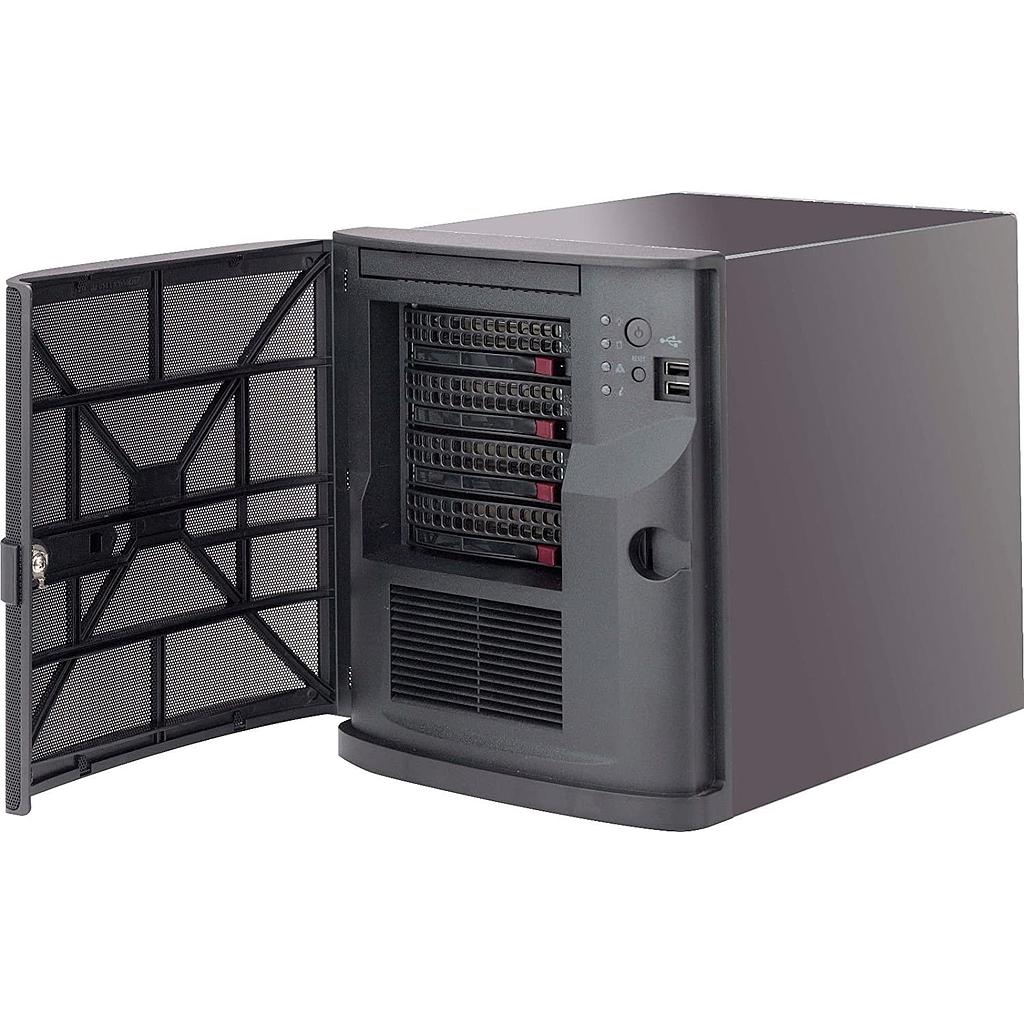

  3. Supermicro SuperServer 5029AP-TN2 Mini-tower server - Intel Atom x5-E3940 1.60 GHz - serial ATA/600 controller 8 GB RAM support - 0, 1, 5, 10 RAID levels - Intel HD Graphics 500 graphic card Gigabit Ethernet - 2*SFF bay(s) - 4*LFF bay(s) - hot swappable bays - 1 x 250 W

Supermicro SuperServer 5029AP-TN2 Mini-tower server - Intel Atom x5-E3940 1.60 GHz - serial ATA/600 controller 8 GB RAM support - 0, 1, 5, 10 RAID levels - Intel HD Graphics 500 graphic card Gigabit Ethernet - 2*SFF bay(s) - 4*LFF bay(s) - hot swappable bays - 1 x 250 W

696.00 € 696.0 EUR

674.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

https://www.supermicro.com/products/system/midtower/5029/SYS-5029AP-TN2.cfm

Product SKUs
SYS-5029AP-TN2
  • SuperServer 5029AP-TN2 (Black)
Motherboard

Super A2SAV
Processor/Cache
CPU
  • Intel® Atom™ Processor E3940
  • FCBGA 1296
  • System-on-Chip
System Memory
Memory Capacity
  • 1x 204-pin DDR3 SO-DIMM socket
Memory Type
  • 1866/1600/1333MHz Unbuffered non-ECC SO-DIMM DDR3, 204-pin gold-plated DIMMs
DIMM Sizes
  • 8GB, 4GB, 2GB
Memory Voltage
  • 1.5 V, 1.35 V
On-Board Devices
SATA
  • SoC controller for 2 SATA3 (6Gbps) ports
  • Marvel 88SE9230 controller for 4 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
Network Controllers
  • Dual GbE LAN with Intel i210-AT controller
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video
  • Intel HD Graphics
Input / Output
SATA
  • 6 SATA3 (6Gbps) ports
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 2 USB 3.0 (2 rear)
  • 4 USB 2.0 (2 rear, 2 front)
  • 1 USB 2.0 (Type A)
COM Port
  • 2 serial ports
DOM
  • 1 SATA DOM (Disk on Module) power connector
Video
  • 1 VGA, 1 DP (Display Port), 1 HDMI, 1 eDP (Embedded Display Port), 1 Intel HD Graphics
TPM
  • 1 TPM 1.2 onboard Header
Management
Software
Power Configurations
  • ACPI Power Management
  • ATX Power connector
  • Control of power-on for recovery from AC power loss
  • CPU thermal trip support for processor protection
Chassis
Form Factor
  • Mini Tower
Model
Dimensions and Weight
Height
  • 240mm / 350mm pkg.
Width
  • 210mm / 315mm pkg.
Depth
  • 279mm / 410mm pkg.
Weight
  • Net Weight: 6.8 kg
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED
Expansion Slots
PCI-E
  • 1 PCI-E 2.0 x2 (in x8) slot
  • 1 M.2 PCIe 2.0 x2, M Key 2242/80
  • 1 Mini-PCIe with mSATA
Drive Bays
HDD
  • 4 Hot-swap 3.5" drive bays
  • 2 Internal 2.5" fixed drive bays
Peripheral
  • 1 slim DVD-ROM drive bay (shared with 1 internal 2.5" fixed drive bay)
Power Supply
250W Flex ATX Multi-output Bronze Power Supply
AC Voltage
  • 100 - 240V, 50 - 60Hz
+5V
  • Max:14 Amp; Min:0.5 Amp
+12V
  • Max:18 Amp; Min:1 Amp @100V-240V
-12V
  • Max: 0.3 Amp
+3.3V
  • Max: 12 Amp Min: 0.3Amp
5VSB
  • Max: 2.5 Amp
Certification80 PLUS   Bronze Certified
System BIOS
BIOS Type
  • 64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • ACPI 5.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI
Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
       10°C to 35°C
  • Non-operating Temperature:
       -40°C to 70°C
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
