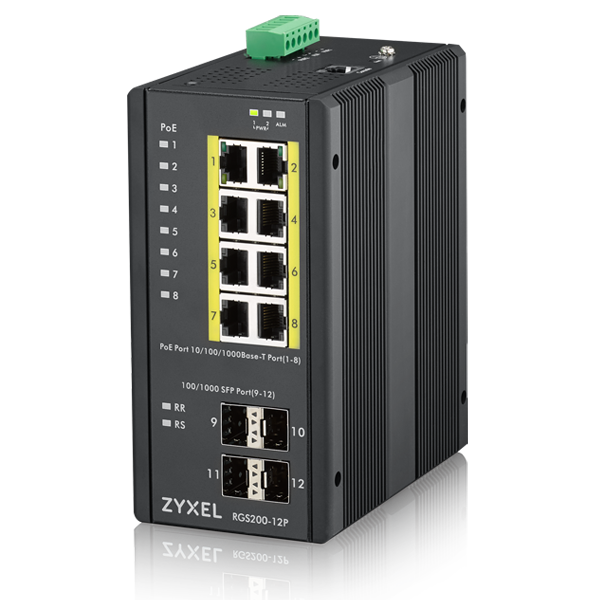

12 Port managed PoE Switch, 240 Watt PoE, DIN Rail, IP30, 12-58V DC

1 136.13 € 1136.13 EUR

1 023.71 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed


8 x 10/100/1000 (PoE+) + 4 x SFP
Power Over Ethernet (PoE)
PoE Budget
240 W
Switching capacity: 24 Gbps Forwarding performance: 17.86 Mpps
Layer 2 multicast groups: 256 ACL: 256 Queues per port: 8
MAC Address Table Size
8K entries
Jumbo Frame Support
Routing Protocol
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2, CLI
Flow control, auto-negotiation, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, Broadcast Storm Control, IPv6 support, half duplex mode, full duplex mode, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, reset button, Cable Diagnostics Function, fanless, LLDP support, DHCP relay, Port Security, Traffic Control, DHCP client, Management Information Base (MIB), 512KB packet buffer, dual firmware images, Strict Priority Queuing (SPQ), port isolation, Class of Service (CoS), tagged VLAN, 8KV ESD Protector, DiffServ Code Point (DSCP) support, Storm Control, ARP inspection, Back Pressure Support, Internet Control Message Protocol (ICMP), Management Information Base (MIB) II, failover protection, Static Link Aggregation, schedule PoE, 2 KV ligthning surge protection
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at

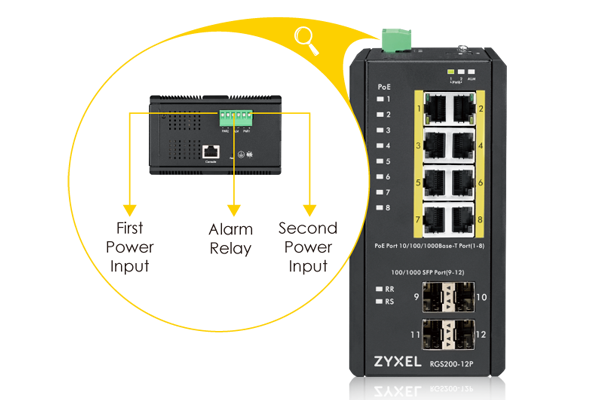

Input: Dual power input 12V~58VDC (PoE/PoE+ requires minimum 48/54V DC)
Dimensions (WxDxH)
7.7 cm x 12.73 cm x 15.4 cm
1.45 kg
