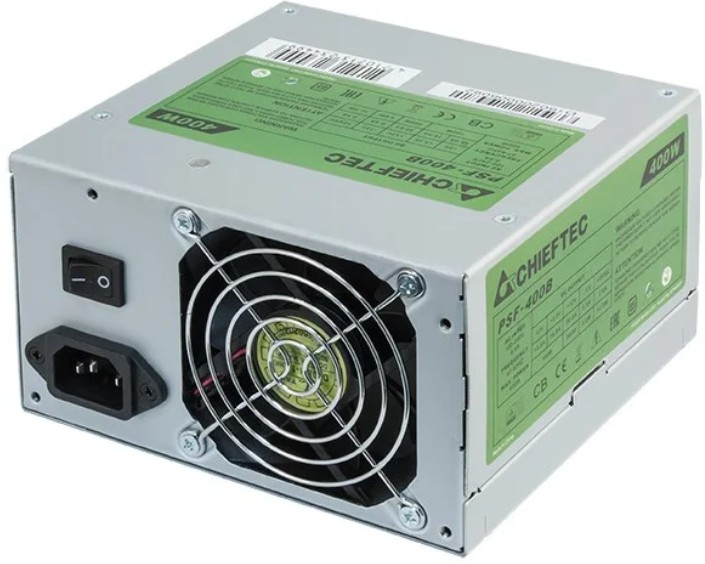

Chieftec PSF-400B ATX-12V 2.3 with/8cm fan
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| Model | SMART 400W |
|---|---|
| Article no. | PSF-400B |
| EAN code | 4710713234499 |
| Weight (without/with package) | 1.49kg / 1.63kg |
| AC Input | 110V-240V / 6A |
| Frequency | 47 - 63Hz |
| +5V | 15A |
| +3,3V | 16A |
| +5V & +3,3V combined | 100W |
| +12V1 | 30A |
| +12V2 | - |
| +12V1, +12V2 combined | 360W |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VSB | 2,5A / 12,5W |
| Maximum Power | 400W |
| 20+4 PIN ATX | 1 |
|---|---|
| 8 PIN EPS (4+4) | 1 |
| 6 PIN PCIe | 1 |
| SATA | 4 |
| MOLEX/FLOPPY | 3/1 |
| 20+4 PIN ATX | 450 |
|---|---|
| 8 PIN EPS (4+4) | 450 |
| 6 PIN PCIe | 450 |
| SATA | 2x 450/150 |
| MOLEX/FLOPPY | 450/150/150/150 |
| ATX12V Version | ATX 12V 2.3 |
|---|---|
| Efficiency | >85% |
| Dimension (DxWxH) | 140 mm x 150 mm x 86 mm |
| PFC | Active PFC (0,9) |
| Fan | 80mm silent fan |
| Security | AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
