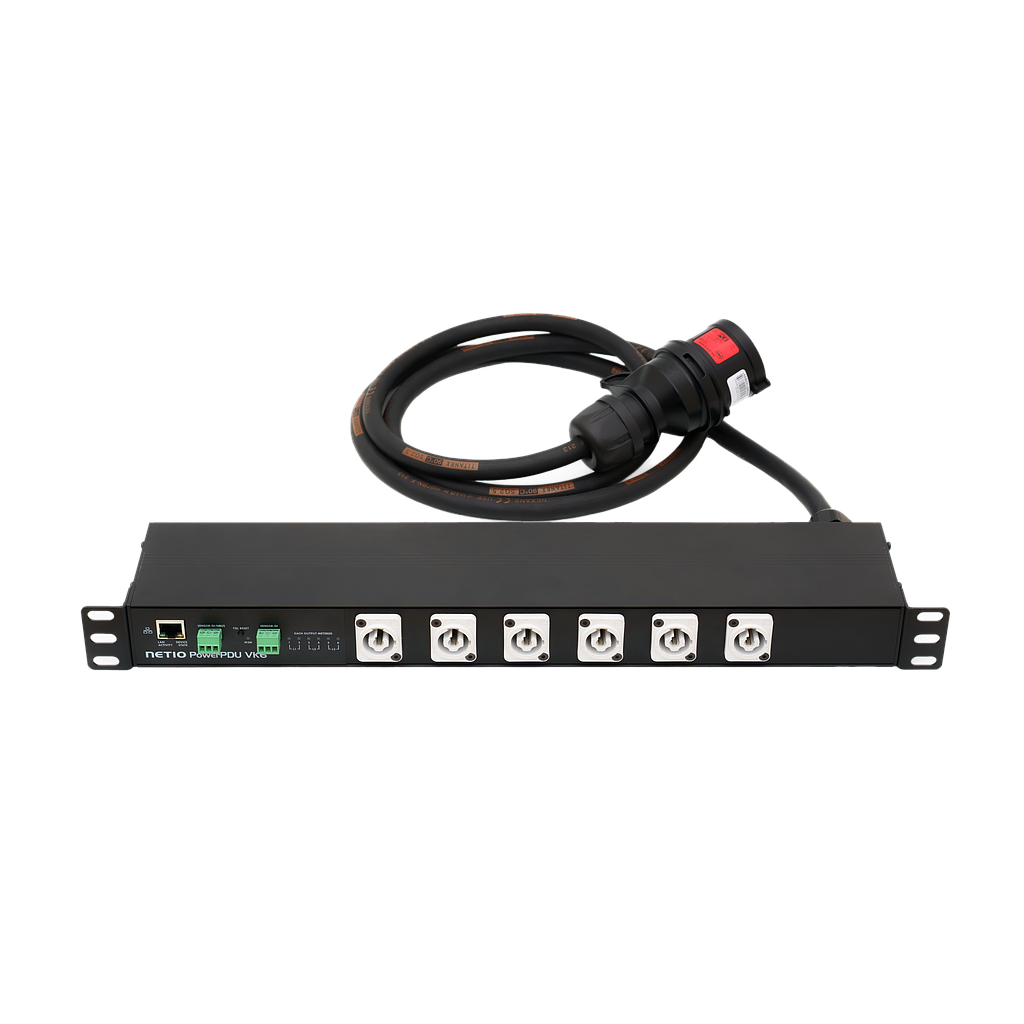

  2. PowerPDU VK6, 3F PDU with metering & switching (3*16A/400V power input, 5-pin CEE plug), 6*16A PowerConn independent sockets (2 outputs per phase)

PowerPDU VK6, 3F PDU with metering & switching (3*16A/400V power input, 5-pin CEE plug), 6*16A PowerConn independent sockets (2 outputs per phase)

969.00 € 969.0 EUR

969.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

PowerPDU VK6 is a three-phase PDU with metering & switching capabilities with a 3 × 16A/400V power input (5-pin CEE plug). It is equipped with six independent 16A PowerConn sockets type, providing two outputs per phase. It includes two digital inputs (DI), LAN and Wi-Fi connectivity, ZVS and nBus support, integration with NETIO Cloud, and open APIs supporting SNMP, MQTT-flex, XML/JSON, Modbus/TCP, and other protocols.

The PowerPDU VK6 is power supply by 3x16A 400V (CEE 5-pole connector/ IEC 60309 RED 400V (3P+N+E 6h)).

Device provides six independent, metered, and switchable power outputs (6 × PowerConn) divided into pairs between 3 phases, each pair rated for 16 A.

The device is also equipped with two Digital Inputs (DI), those can be used for direct connection to a NETIO sensors, NETIO nBus (device daisy-chaining feature), or an S0 counter. Additionally, the PowerPDU VK6 supports both LAN connectivity and integrates all the benefits of the NETIO Toolbox.

Thanks to the Open API, integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy.

With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud service, provided for a fee, uses SSL security and servers in Europe.

Typical applications
LED WALLs installation (Power OFF/ ON/ RESTART)
LED WALLs consumtion metering
AV - 3 phase instalation in broadcasting
Electricity consumption monitoring for machines in the industry
Electric car slow charging control
Controlling the outputs using Open API (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...)
Integration with various third-party programs and applications.

AV drivers for integration

NETIO products can be used together with plenty 3rd party software / hardware or cloud services.


Atlona

AURORA

BrightSign media player (BrightAuthor]

Crestron (SIMPL blocks)

Control4

Cue

ELAN

Elgato Stream Deck

PIXILAB Blocks

Q-SYS

RTI

SKAARHOJ

Utelogy

and many more
