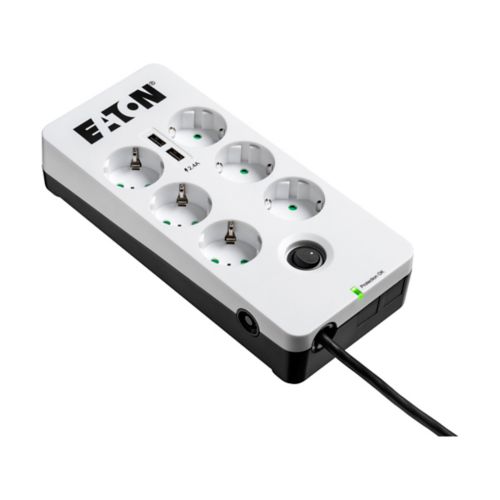

Eaton Protection Box 6 USB DIN, 10A, input: Schuko, outputs: 6*Schuko, 2*USB charging ports
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
PRODUCT NAME
Eaton Protection Box
CATALOG NUMBER
PB6UD
PRODUCT LENGTH/DEPTH
245 mm
PRODUCT HEIGHT
110 mm
PRODUCT WIDTH
47.5 mm
PRODUCT WEIGHT
0.612 kg
WARRANTY
2 year
COMPLIANCES
EAC
CE Marked
CE Marked
CERTIFICATIONS
IEC/EN 60884-1
IEC/EN 61643-11
IEC/EN 61643-11
EAN
3553340667213
MODEL CODE
Eaton Protection Box 6 USB DIN
PRODUCT SPECIFICATIONS
INTERRUPT RATING
10 AIC
PHASE
Single-phase
NUMBER OF NEMA-OUTLETS
0
OPERATING TEMPERATURE - MIN
0 °C
NUMBER OF OUTLETS
6
RAL-NUMBER
9003
HOUSING SHAPE
Rectangular
SWITCHABLE
Yes
SURFACE FINISH
Matt/Matte
MOUNTING METHOD
Portable
35 mm DIN rail
35 mm DIN rail
AMPERAGE RATING
10A
INPUT CONNECTION
Protective contact (SCHUKO)
PACKAGE CONTENTS
- Surge suppressor device
- Quickstart guide
MATERIAL QUALITY
Other
POWER CORD LENGTH
1.5 m
NEMA DESIGNATION
None
SURGE RATING
1500 V
FITTED WITH:
LED indication
Over voltage protection
Fuse
On/Off switch
Over voltage protection
Fuse
On/Off switch
OPERATING TEMPERATURE - MAX
40 °C
DEGREE OF PROTECTION
IP20
CIRCUIT BREAKER
Yes
CORE CROSS SECTION
0 mm²
SPECIAL FEATURES
High end multi outlets surge protection device implementing 6 Schuko (DIN) sockets, IEC 61643-11 compliant, 2 USB ports, including connected equipment warranty
NUMBER OF USB CONNECTIONS
2
COLOR
Black/white
RESIDUAL CURRENT CIRCUIT BREAKER
No
MATERIAL
Plastic
SURGE CURRENT
3000A
ANGLE OF ROTATED CENTRAL INSERT
Other
TYPE
Surge Suppressor
HALOGEN FREE
No
INDICATOR TYPE
Color LED
OPERATING VOLTAGE
220-250 V
TRANSPARENT
No
SURFACE PROTECTION
Other
NUMBER OF SOCKET OUTLETS WITH PROTECTIVE CONTACT
6
NOMINAL FREQUENCY
50-60 Hz
INTERNET/TEL LINE PROTECTION
No
