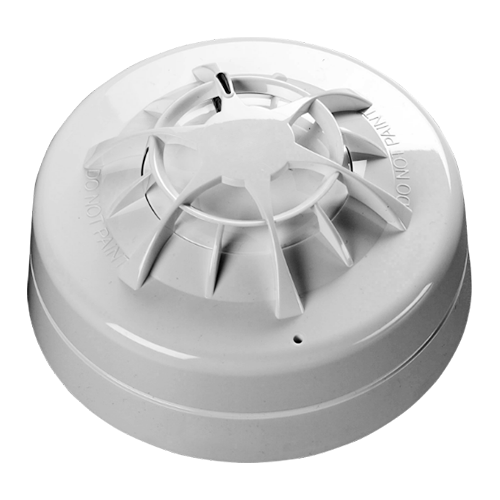

Apollo Orbis 75C BS fix temp.andur 11004, reageerib 75 kraadi juures

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

General	Warranty 10 year Applications B&Bs/guest houses Car parks/loading bays Dusty environments Restaurants Retail Small to medium buildings Fire Type Fast burning, flaming fires
Performance	Heat classification BS
Mechanical	Colour White Weight 70g Materials housing Polycarbonate Product length 36mm Product diameter 97mm Product length 1.42in Product diameter 3.82in
Conformance	Approvals FG BOSEC CPR LPCB
Electrical	Maximum power-up time <20 seconds Quiescent current 95μA Quiescent current tested at 24V dc Polarity L1 & L2 are polarity sensitive Minimum 'detector active' voltage 6V Holding voltage 5 to 33V Holding voltage (max) 33V Holding voltage (min) 5V Minimum voltage to light alarm LED 5V Alarm reset time 1s Alarm load 600Ω
Environmental	Humidity (max) 98% RH Humidity (min) 0% RH Humidity Note no condensation or icing Humidity 0% to 98% (no condensation or icing) Operating temperature -40 to 70°C Operating temperature (max) 70°C Operating temperature (min) -40°C IP rating Value IP23D Storage temperature (max) 70°C Storage temperature (min) -40°C Storage temperature -40 to 70°C
