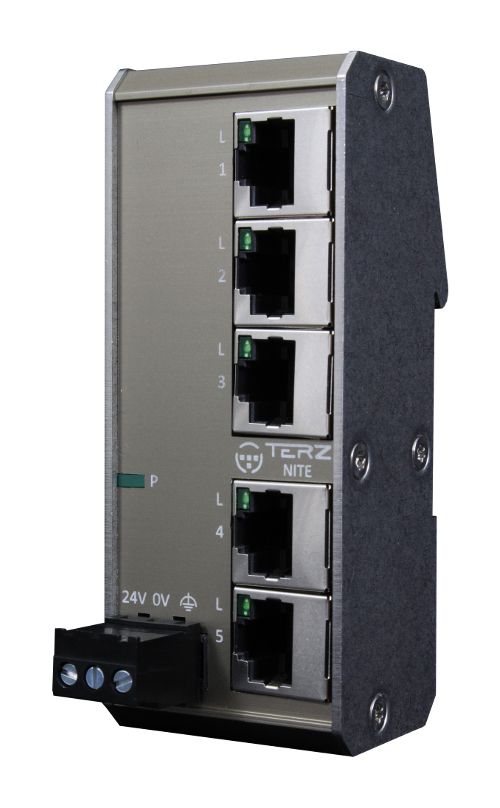

5-port unmanaged industrial Fast Ethernet switch with a 32.5 mm installation depth
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
With a mounting depth of only 32.5 mm and a height of 105 mm, these industrial Ethernet switches impress with their extremely flat and high-quality aluminum housings.
Thanks to their 24 VAC/VDC power supply with inrush current limiting and reverse polarity protection, these ultra-compact switches can be used in any control cabinet. The reduced footprint and the front-mounted connections allow for optimized cabinet layouts and cabling, thus reducing costs. The high-quality metal DIN rail mounting ensures a firm and secure hold. Like all TERZ industrial Ethernet switches, the slim NITE-RF switches are fully PROFINET compatible thanks to two frame forwarding options.
Thanks to their 24 VAC/VDC power supply with inrush current limiting and reverse polarity protection, these ultra-compact switches can be used in any control cabinet. The reduced footprint and the front-mounted connections allow for optimized cabinet layouts and cabling, thus reducing costs. The high-quality metal DIN rail mounting ensures a firm and secure hold. Like all TERZ industrial Ethernet switches, the slim NITE-RF switches are fully PROFINET compatible thanks to two frame forwarding options.
| Number of connections: | 5 connections |
|---|---|
| Fieldbus options: | PROFINET |
| IP Level: | IP30 |
| Temperature range: | -40°C to 70°C |
| Connection: | 10/100 |
| Management: | unmanaged |
