| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Extends fiber distance up to 2km |
|---|
| Interface | 1 100M SC/UPC port
1 100M RJ45 port (Auto MDI/MDIX) |
|---|
| Wave Length | 1310nm |
|---|
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
|---|
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m) |
|---|
| Network Media 100BASE-FX | Multi-mode Fiber |
|---|
| Dimensions ( W x D x H ) | 94.5*73.0*27.0 mm |
|---|
| Power Supply | External power supply |
|---|
| Max. Power Consumption | 2.4W |
|---|
| LED | PWR, Link/Act |
|---|
| Safety & Emission | FCC, CE, RoHS |
|---|

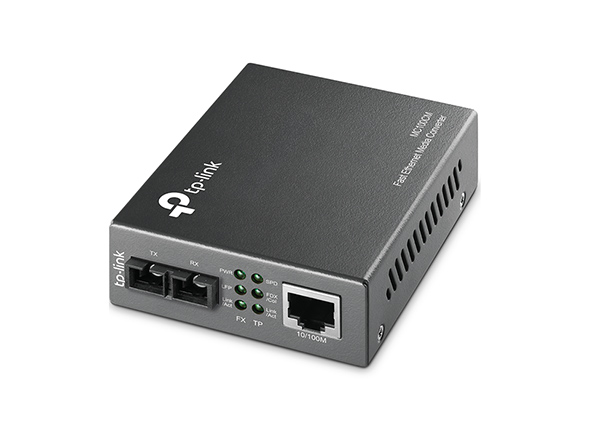

| Package Content | • Media Converter MC100CM
• Power Adapter
• Installation Guide |
|---|
| Environment | Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
