Tehnilised andmed
| General | |
| Product Type: | LED-backlit LCD flat panel display |
| Power Consumption Operational: | 90 Watt |
| Diagonal Class: | 24" |
| Commercial Use: | Yes - interactive digital signage |
| Series: | OHB Series |
| Outdoor: | Yes |
| Platform: | Tizen OS |
| Operating System: | Tizen OS 6.5 |
| TV Tuner: | No tuner |
| TV Tuner Presence: | No |
| Sensors: | Brightness sensor |
| Video Interface: | HDMI |
| HDMI Ports Qty: | 1 ports |
| Modes: | Portrait mode, landscape mode |
| Picture Enhancements: | Mega Dynamic Contrast Ratio, 72% Colour Gamut |
| Design: | Slim Design |
| Protection: | Weatherproof, water-resistant, impact protection, magic protection glass, 5T tempered glass protection |
| Dimensions: | Without stand |
| Width: | 57.3 cm |
| Depth: | 5.98 cm |
| Height: | 34.24 cm |
| Weight: | 8.4 kg |
| Display | |
| LCD Display Technology: | IPS |
| Pixel Pitch: | 0.2745 mm |
| Resolution: | 1920 x 1080 |
| Display Format: | 1080p |
| Image Aspect Ratio: | 16:9 |
| LCD Backlight Technology: | LED backlight |
| Coating: | Anti-reflection, 25% Glass Haze |
| Image Contrast Ratio: | 1000:1 |
| Brightness: | 1500 cd/m² |
| Viewing Angle: | 178 degrees |
| Viewing Angle (Vertical): | 178 degrees |
| Response Time: | 14 ms |
| Commercial Features: | SMART Signage Platform, MagicInfo S7 Player |
| Operation Hours / Days: | 24 / 7 |
| Features: | Samsung Workspace secured by Knox |
| Stands & Mounts | |
| Flat Panel Mount Interface: | 100 x 100 mm |
| VESA Compatibility: | Yes |
| Media Player | |
| USB Port: | Yes |
| USB Ports Qty: | 2 |
| Configuration: | 8 GB |
| Network & Internet Multimedia | |
| Connectivity: | LAN |
| Connections | |

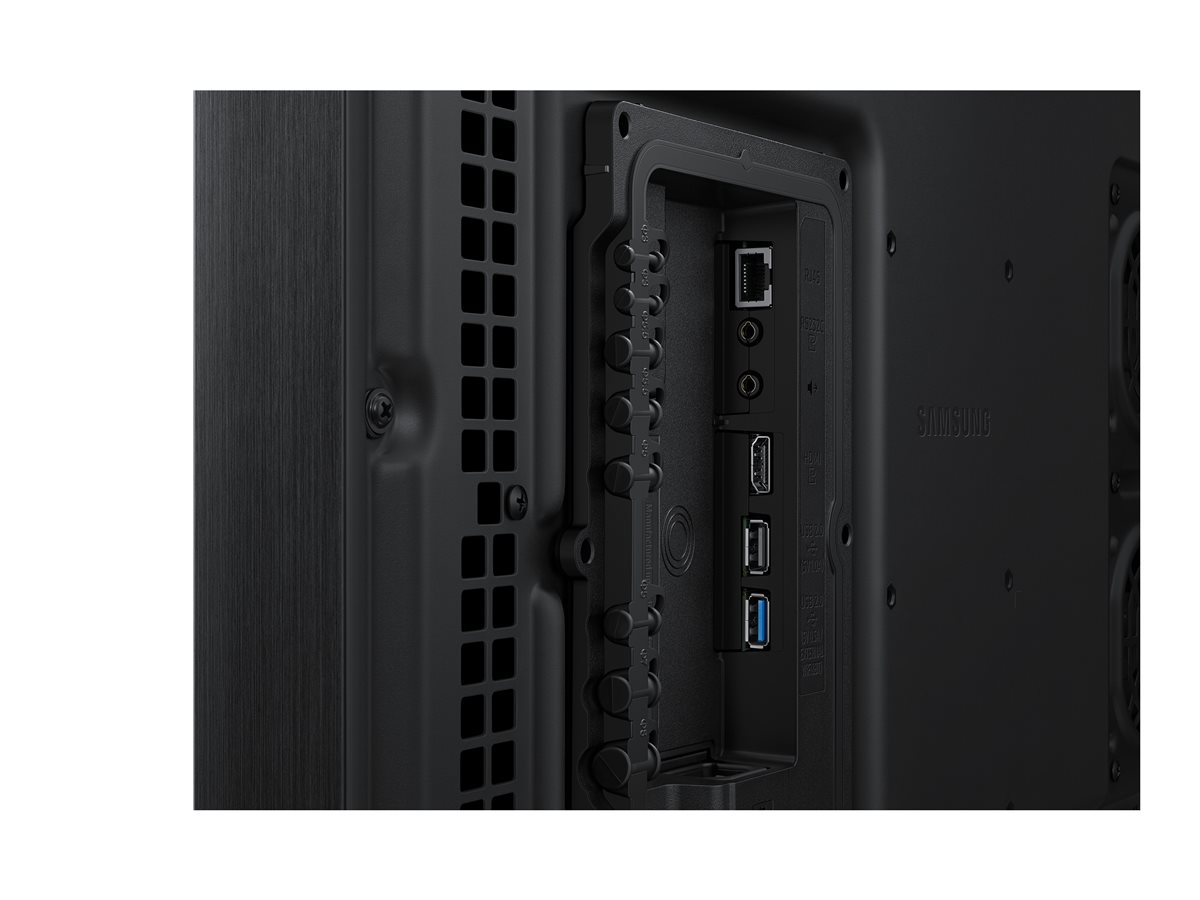

| Connector Type: | HDMI input 2 x USB Audio line-out Audio line-out RS-232 input LAN |
| Miscellaneous | |
| Compliant Standards: | IK10, EMC Class A, HDCP 2.2, IP56, Safety 60950-1, Safety 62368-1 |
| Power | |
| Power Device: | Power supply |
| Input Voltage: | AC 100-240 V (50/60 Hz) |
| Power Consumption Sleep: | 0.5 Watt |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
| Dimensions & Weight (Shipping) | |
| Width (Shipping): | 73 cm |
| Depth (Shipping): | 14 cm |
| Height (Shipping): | 43.8 cm |
| Weight (Shipping): | 10 kg |
| Environmental Parameters | |
| Min Operating Temperature: | -30 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 10 - 80% (non-condensing) |
