  2. KTI industrial DIN-rail AC-DC 48V 100W power supply

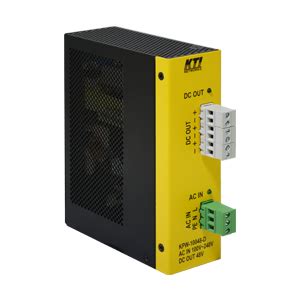

KTI industrial DIN-rail AC-DC 48V 100W power supply

275.00 € 275.0 EUR

275.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

AC IN Voltage100 ~ 240VAC, 50/60Hz
DC Output voltage+48V (+/-1%), 2.1A max.
Output Rated Power100W max.
Efficiency92% (Typ.)
Input connectorsTerminal block 3P: L/N/PE
Output connectorsTerminal block 6P: 3 Vout+/Vout- pairs
LEDsAC input, DC output
ProtectionShort circuit, Over current, Over voltage
EnvironmentOperating Temperature: -30°C ~ 60°C
Storage Temperature: -40°C ~ 85°C
Relative Humidity: 10% ~ 90% non-condensing
Power Derating100% @ -30°C ~ 50°C, 75% @ 60°C
Fan CoolingNo
Mounting SupportDIN-Rail, Panel
Dimensions42 x 106 x 140 (WxDxH)
Internal Power ModuleUL60950-1, TUV60950-1, IEC60950-1 certification
MTBF181K Hours
ApprovalFCC Class A, CE mark Class A, LVD, IEC 60068-2-64 Vibration,
IEC 60068-2-27 Shock 50G test
