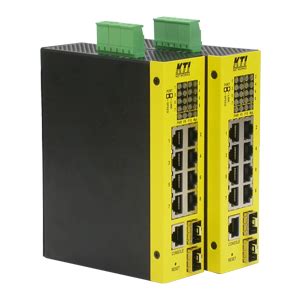

KTI industrial managed PoE switch, 8*10/100/1000Mbps RJ45-ports, 2*100/1000 Mbps SFP (dual speed) ports
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| Standard | IEEE 802.3, 802.3ab, 802.3z, 802.3x, 802.3at, 802.1x, 802.1w, 802.1D, 802.1Q |
| Network Ports | 8 10/100/1000Mbps Gigabit copper ports 2 1G/100Mbps SFP slots |
| Copper Port | Shielded RJ-45, 10/100/1000Mbps, auto-negotiation, auto-MDI/MDI-X |
| Mini-GBIC SFP | SFP connector, Interface: 1000BASE-X and 100BASE-FX support |
| Console | Connector: Shielded RJ-45, Interface: RS-232 |
| Network Cables | 10/100/1000Mbps copper: Cat.5, 5e or higher up to 100m 1000Base-X: 62.5/125µm, 50/125µm MM fiber, 9/125µm SM fiber |
| Power over Ethernet | IEEE 802.3at compliant (High power PoE) PSE on Port 1 ~ Port 4 30W max. at port output for Cat.5 distance of 100 meters |
| MAC Addresses | 8K |
| LED Indication | Per unit: Power, Management status Per port: Speed, link/activity status Per SFP: Speed/link/activity status Per PoE port: PoE status |
| Relay Output | Alarm: power failure, specific port link fault Interface: 2 terminal contacts (30VDC/1A max. or 120VAC/0.5A max.) |
| DC Power Input | Screwed terminal block: 2 pairs of +/- contacts Operating voltage range: +7 ~ +60VDC Voltage for PoE support: +45 ~ +57VDC |
| Powered via PoE | PD port: Port 2 IEEE 802.3af & 802.3at compliant Class 3 (only KGS-1060) |
| Power Consumption | 9W max. (Full load with no PoE support) 130W max. (Full load with 4 PoE+ max. output) |
| Housing | Enclosed metal with no fan |
| Dimension | 42 x 106 x 140 mm (WxDxH) |
| Mounting Support | DIN-Rail, Panel Mounting (Optional) |
| Environment | Operating Temperature: -40°C ~ 70°C Storage Temperature: -40°C ~ 85°C Relative Humidity: 5% ~ 95% non-condensing |
| Approval | FCC Class A, VCCI Class A, CE mark Class A, IEC 60950-1 safety EN 61000-6-4 emission, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2 Immunity for industrial environment, IEC 60068-2-64 Vibration, IEC 60068-2-27 Shock 50G test, NEMA TS2 environment |
