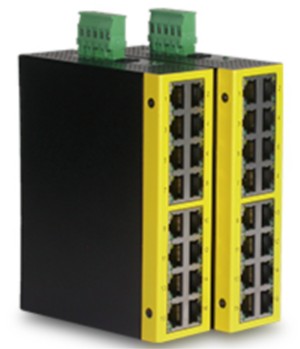

KTI industrial 16-port L2 unmanaged FE switch
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| Standard | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX std. |
| Network Ports | 16 10/100 Fast Ethernet copper ports Shielded RJ-45 jacks with auto-negotiation, auto-MDI/MDI-X support |
| Flow control | IEEE 802.3x pause packet for full-duplex operation Back-pressure for half-duplex operation |
| Cables | 10BASE-T: Cat. 3, 4, 5 or higher (100 meters max.) 100BASE-TX: Cat. 5, 5e or higher (100 meters max.) |
| LEDs | Power status Port link/activity status Port speed status |
| Forwarding rate | 10Base-T: 10Mbps (Half-duplex) 20Mbps (Full-duplex) 100Base-TX: 100Mbps (Half-duplex) 200Mbps (Full-duplex) |
| MAC Table | 8K entries |
| Packet Size | Up to 2K bytes |
| Environment | Operating Temperature: -20°C ~ 70°C (Device) Storage Temperature: -20°C ~ 85°C Relative Humidity: 10% ~ 90% non-condensing |
| Dimensions | 40 x 106 x 140 mm (WxDxH) |
| Power Input Voltage | KFS-1640-L: +4.5 ~ +50VDC KFS-1640-H: +110VDC with polarity protection 90 ~ 150VAC |
| Power Input Connector | Industrial Terminal Block 5P: Vin +/-, PE, PF +/- (PF: Power failure relay output) DC Jack ( KFS-1640-L) |
| Power Consumption | 3.4W max. (KFS-1640-L) 5.2W max. (KFS-1640-H) |
| Housing | Enclosed metal with no fan |
| Mounting Support | DIN-Rail, Panel mounting (optional) |
| Approval | FCC Class A, VCCI Class A, CE mark Class A, IEC60950-1 safety, C-Tick |
