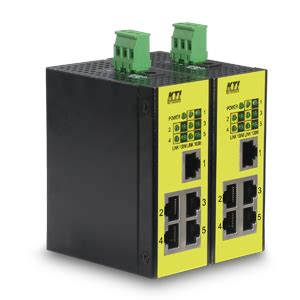

KTI industrial 5-port L2 unmanaged FE switch
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| Standard | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX std. |
| Network Ports | 5 10/100 Fast Ethernet copper ports Shielded RJ-45 jacks with auto-negotiation, auto-MDI/MDI-X support |
| Flow control | IEEE 802.3x pause packet for full-duplex operation Back-pressure for half-duplex operation |
| Cables | 10Base-T: Cat. 3, 4, 5 or higher (100 meters max.) 100Base-TX: Cat. 5, 5e or higher (100 meters max.) |
| LEDs | Power status, Port link/activity status, Port speed status |
| Forwarding rate | 10Base-T: 10Mbps (Half-duplex) 20Mbps (Full-duplex) 100Base-TX: 100Mbps (Half-duplex) 200Mbps (Full-duplex) |
| Packet Size | Up to 1536 bytes |
| Environment | Operating Temperature: -35°C ~ 70°C Storage Temperature: -40°C ~ 85°C Relative Humidity: 10% ~ 90% non-condensing |
| Dimensions | 40 x 80 x 95 mm (WxDxH) |
| DC Power Input | Screwed terminal block DC jack: -D 6.3mm/+D 2.0mm Operating voltage range: +7V ~ +30VDC |
| Power Consumption | 2.2W max. |
| Housing | Enclosed metal with no fan |
| Mounting Support | DIN-Rail, Wall, Panel mounting (optional) |
| Approval | FCC/VCCI/CE Class A, EN 55032, EN 61000-6-4 emission, EN 61000-3-2, EN 61000-3-3, EN 61000-6-2 Immunity for industrial environment, IEC 60068-2-64 Vibration, IEC 60068-2-27 Shock 50G test, IEC 60068-2-27 Bump 25.5G test |
