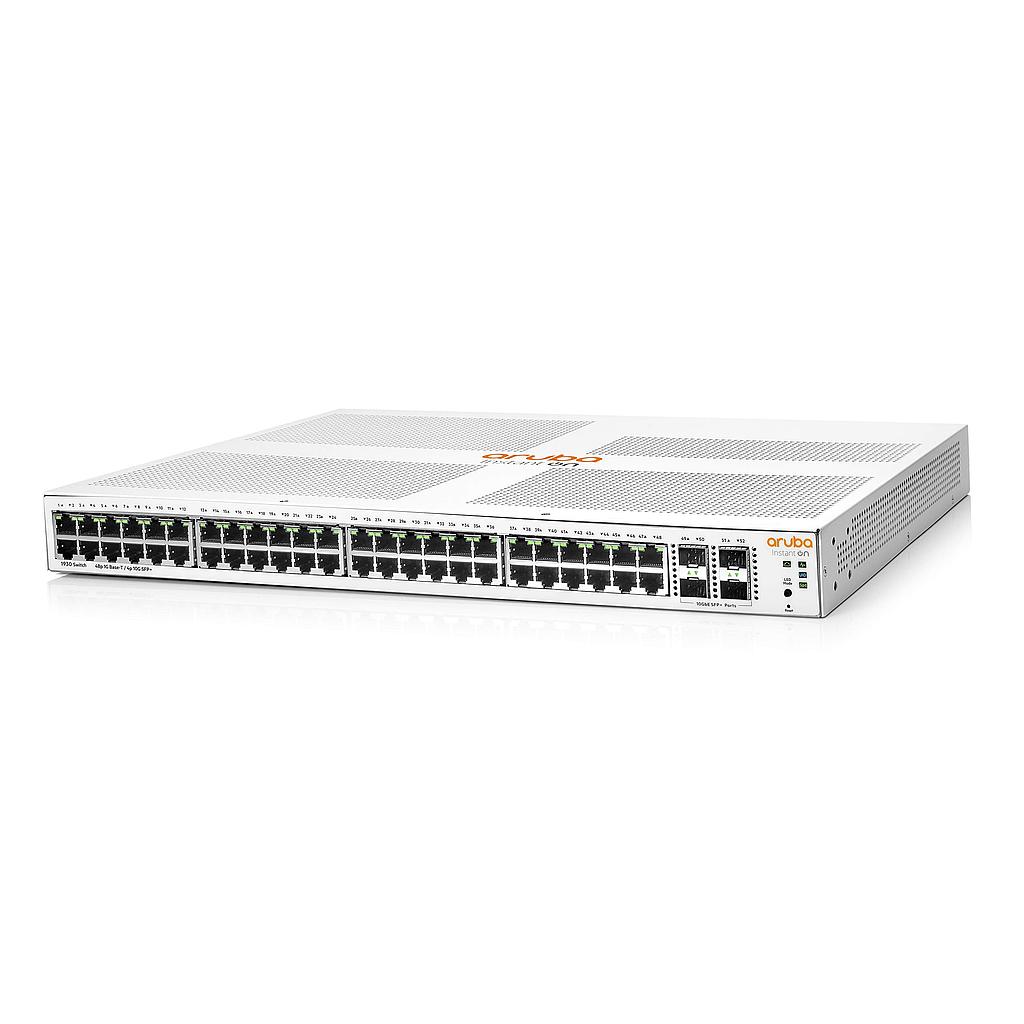

HPE Aruba Instant On 1930 48G 4SFP+ switch
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| General | |
| Device Type: | Switch - 48 ports - L2+ - Managed |
| Enclosure Type: | Rack-mountable 1U |
| Subtype: | 10 Gigabit Ethernet |
| Ports: | 48 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ |
| Performance: | Throughput: 130.95 Mpps Switching capacity: 176 Gbps Latency (1 Gbps): 2.2 µs Latency (10 Gbps): 1.2 µs |
| Capacity: | Routing table entries (static): 32 |
| MAC Address Table Size: | 16K entries |
| Jumbo Frame Support: | 9216 bytes |
| Routing Protocol: | IGMPv2, IGMP, static IPv4 routing, MSTP, RSTP, STP |
| Remote Management Protocol: | SNMP, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SCP, DHCP, IPv4, IPv6 |
| Encryption Algorithm: | SSL |
| Authentication Method: | RADIUS |
| Features: | Flow control, DHCP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, manageable, IPv6 support, half duplex mode, full duplex mode, STP support, RSTP support, MSTP support, ACL support, QoS, Jumbo Frames support, TPM, IPv4 support, LACP support, LLDP support, LACP, CoS, SNMP support, 1.5MB packet buffer, BPDU, LLDP-MED, EEE |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Processor: | 1 x ARM Cortex-A9: 800 MHz |
| RAM: | 512 MB |
| Flash Memory: | 256 MB |
| Expansion / Connectivity | |
| Interfaces: | 48 x 1000Base-T RJ-45 4 x Gigabit / 10Gbit LAN SFP+ |
| Power | |
| Power Device: | Internal power supply |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Miscellaneous | |
| MTBF: | 114 years |
| Compliant Standards: | VCCI, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, CNS 13438, EN 55024:2010, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, IEC 62368-1, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1:2014, CAN/CSA-C22.2 No. 60950-1, CISPR 35, EN 55035:2017, EN 55032:2015+AC:2016 Class A |
| Localisation: | English / Europe |
| Dimensions & Weight | |
| Width: | 44.25 cm |
| Depth: | 28.24 cm |
| Height: | 4.39 cm |
| Weight: | 3.13 kg |
| Environmental Parameter | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 15 - 95% (non-condensing) |
| Min Storage Temperature: | -40 °C |
| Max Storage Temperature: | 70 °C |
| Humidity Range Storage: | 15 - 95% (non-condensing) |
