  2. IA seeria LiFePO4 normaalaku 12V, 100Ah, Smart-BMS, Bluetooth & heating

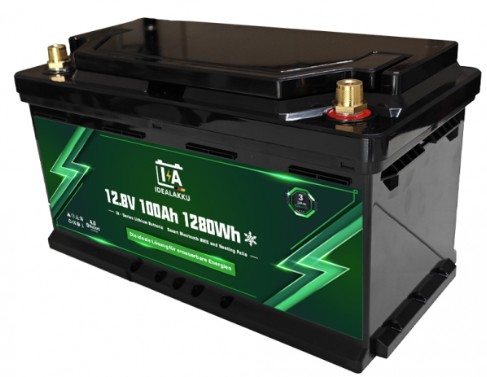

IA seeria LiFePO4 normaalaku 12V, 100Ah, Smart-BMS, Bluetooth & heating

413.98 € 413.98 EUR

413.98 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

  • Integrated heating film: Can be used even at arctic temperatures down to -35°C
  • Prismatic Grade-A cells: High energy density, stable LiFePO4 technology and long lifespan
  • 150A maximum continuous discharge current: Strong power reserve for inverters and on-board consumers
  • Smart BMS with Bluetooth: App available in the Apple Store and on Google Play
  • Compact & lightweight: 10.2 kg | 355 x 175 x 188 mm (DIN H8/LN5)
  • Direct replacement: Replaces 12.8V 200Ah lead-acid gel AGM batteries at a significantly lower weight.
  • Perfect fit: Specially adapted for under-seat installation in Fiat Ducato, Citroën and Peugeot motorhomes

  • Model12.8V 100Ah/1280Wh
    Replaces lead acid gel AGM battery12.8V 200Ah
    Cell typePrismatic Grade-A cell
    Dimensions including clamps (L x W x H)355 x 175 x 188 mm
    Weight (without accessories)10.2 kg
    menstrual cycle>6000 @ 80% DoD
    Internal resistance≤7 mΩ
    Recommended charging voltage14.6V
    Maintenance charging voltage (standby)13.8±0.8V
    Recommended charging current30A
    Maximum charging current50A
    Continuous discharge current150A
    Peak discharge cutoff current450A (200~500ms)
    Operating voltage range10 – 14.6V
    End of the discharge voltage range10 – 11.2V
    Terminal typeSAE standard
    Protection classIP65
    Charging temperature0~50°C
    Discharge temperature-20~75°C
    Storage temperature-5 to 35°C
    Heating operating temperature-35 to 5°C
    Storage conditionCharge the battery every 3 months
    Series and parallel availabilityMaximum 4 pieces in series and 4 pieces in parallel connection
    CertificationsCE/UL/UN38.3/MSDS/ROHS/UN 3480/CLASS 9
