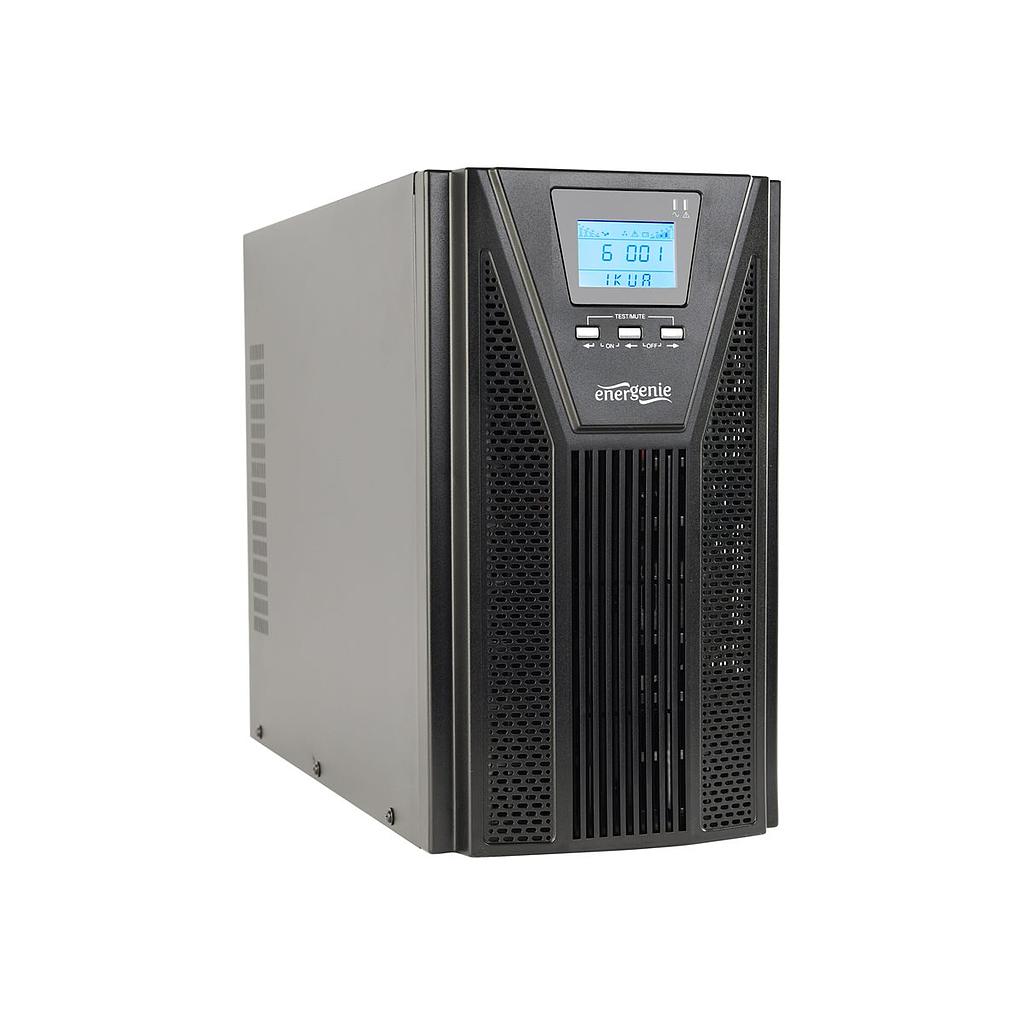

Energenie by Gembird online UPS 3000VA/2700W, 2Schuko + 3IEC socket, LCD display

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

UPS type: online, pure sine wave
Input: 220V AC ± 25%, 50Hz / 60Hz ± 10%
Output: 220V AC ± 1%, 50Hz / 60Hz ± 0.5% (on battery)
Output power factor: 0.9
Inverter output efficiency (resistive load): 85%, any load type is allowed
Switching time: zero
Backup time: 8...20 mins (depends on the load)
Battery: 151 x 65 x 95 mm, sealed lead-acid 12 V / 9 Ah / 2.35 kg x 6 pcs (72 VDC)
Charge time: 90% capacity restored in 3 hours
External battery connectors: yes

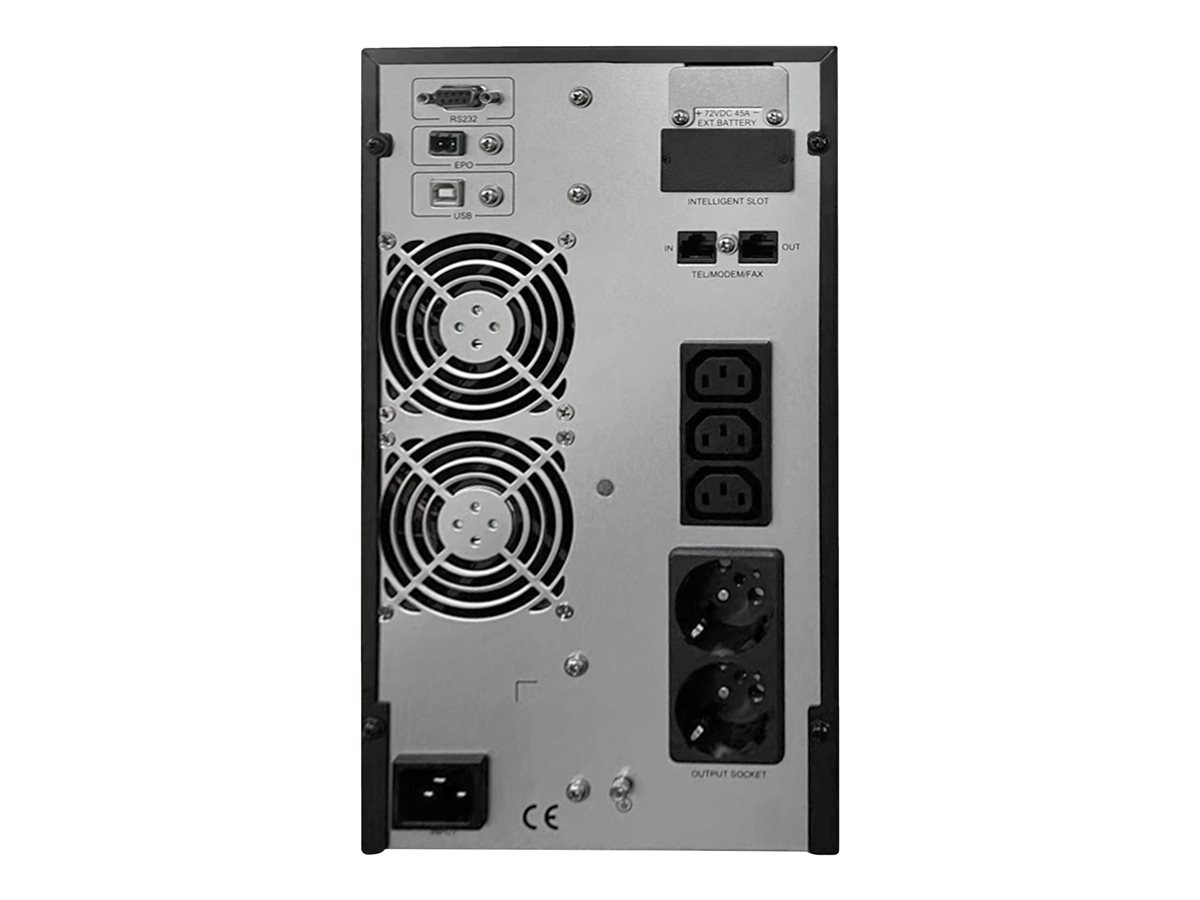

Sockets: input IEC C14, outputs: 2x Schuko sockets + 3x IEC sockets
Interface communication: USB; optional slots: RS485 / dry contacts / SNMP
Operating conditions: 0°C~40°C, at humidity 10~90%RH non condensing
Noise: < 45 dB (at 1 meter distance)
Power: 3000 VA (2700 W)
Dimensions: 191 x 419 x 335 mm
Product weight: 24.3 kg
"Cold-start" function

UPS type: online, pure sine wave

Input: 220V AC ± 25%, 50Hz / 60Hz ± 10%

Output: 220V AC ± 1%, 50Hz / 60Hz ± 0.5% (on battery)

Output power factor: 0.9

Inverter output efficiency (resistive load): 85%, any load type is allowed

Switching time: zero

Backup time: 8...20 mins (depends on the load)

Battery: 151 x 65 x 95 mm, sealed lead-acid 12 V / 9 Ah / 2.35 kg x 6 pcs (72 VDC)

Charge time: 90% capacity restored in 3 hours

External battery connectors: yes

Sockets: input IEC C14, outputs: 2x Schuko sockets + 3x IEC sockets

Interface communication: USB; optional slots: RS485 / dry contacts / SNMP

Operating conditions: 0°C~40°C, at humidity 10~90%RH non condensing

Noise: < 45 dB (at 1 meter distance)

Power: 3000 VA (2700 W)

Dimensions: 191 x 419 x 335 mm

Product weight: 24.3 kg

"Cold-start" function

System Requirements
In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work.
