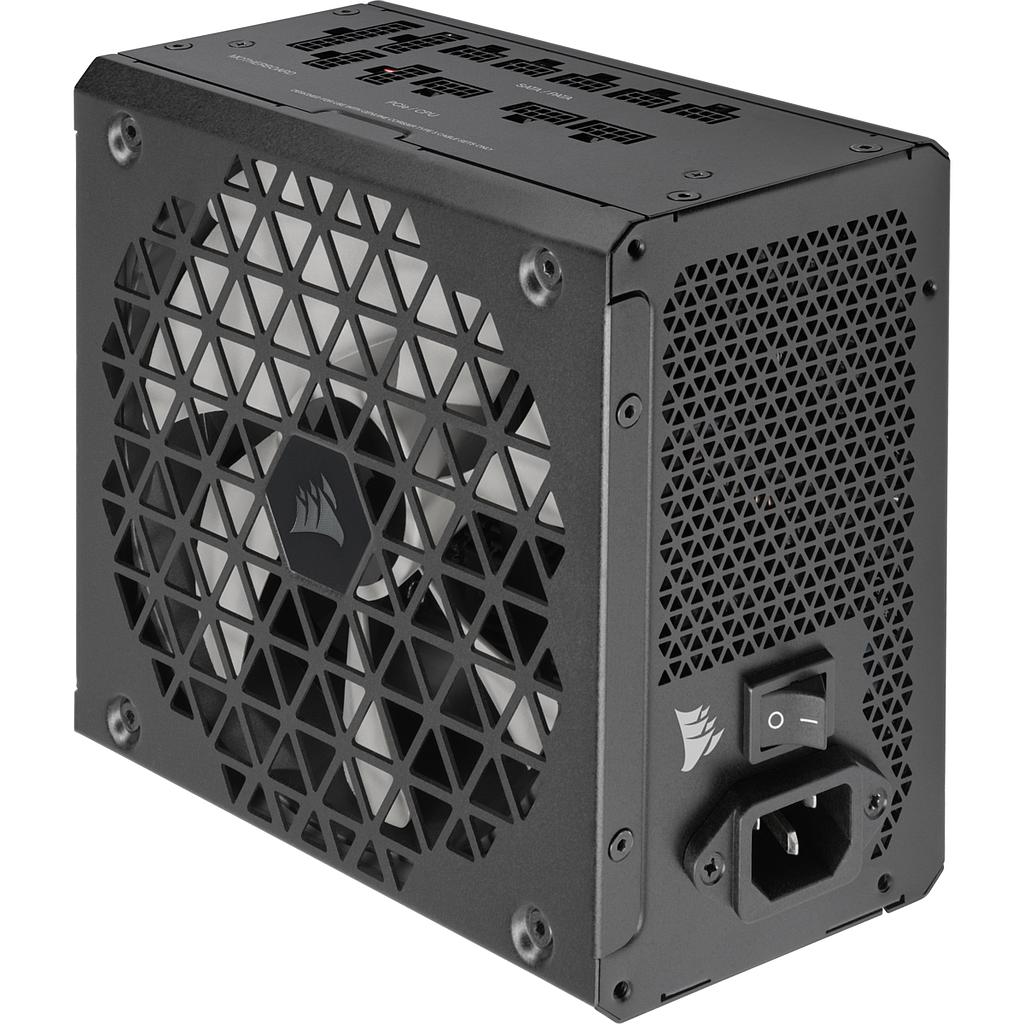

Corsair RM850x shift 850W ATX 3.0 80Plus Gold certified fully modular power supply
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://www.corsair.com/eu/en/p/psu/cp-9020252-eu/rm850x-shift-80-plus-gold-fully-modular-atx-power-supply-cp-9020252-eu
| General | |
| Device Type: | Power supply - internal |
| Specification Compliance: | ATX12V 3.0/ EPS12V 2.92 |
| PSU Form Factor: | ATX |
| Localisation: | Europe |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Frequency Required: | 47 - 63 Hz |
| Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section 1 x 12VHPWR 2 x 2 x 8 pin PCI Express power with detachable 2 pin section 2 x 8 pin PCI Express power with detachable 2 pin section 12 x 15 pin Serial ATA power 8 x 4 PIN internal power |
| Output Voltage: | +3.3, +5, +12 V |
| Power Capacity: | 850 Watt |
| Output Current: | +3.3V - 20 A +5V - 20 A +12V - 70.8 A +5VSB - 3 A |
| Modular Cable Management: | Yes |
| 80 PLUS Certification: | 80 PLUS Gold |
| Miscellaneous | |
| Included Accessories: | Cable ties, mounting screw |
| Cables Included: | AC input cable Power 24 pin ATX modular cable 61 cm 16-pin 12VHPWR power cable 65 cm 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 2 x 8 pin PCI Express power with detachable 2 pin section modular cable 65 cm Power 8 pin EPS12V with detachable 4 pin ATX12V section modular cable 65 cm 3 x power 15 pin SATA cable 80 cm 2 x 4 pin internal power cable 75 cm |
| MTBF: | 100,000 hours |
| Cooling System: | 140 mm fan |
| Features: | Fully modular, fluid dynamic bearing cooling fan, Zero RPM fan mode, Modern Standby compatible, LLC resonant converter technology, DC-DC technology, side connections, overpower protection, over voltage protection, over current protection, overheat protection, short-circuit protection |
| Compliant Standards: | EN 55032:2015+A11:2020, EMC, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019, EN IEC 61000-3-2:2019+A1:2021, EN IEC 62368-1:2020+A11:2020, EN/IEC 63000:2018, LVD, RoHS |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 10 years |
| Dimensions & Weight | |
| Width: | 15 cm |
| Depth: | 16 cm |
| Height: | 8.6 cm |
| Weight: | 1.7 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 21.4 cm |
| Shipping Depth: | 30.2 cm |
| Shipping Height: | 12.9 cm |
| Shipping Weight: | 3.3 kg |
