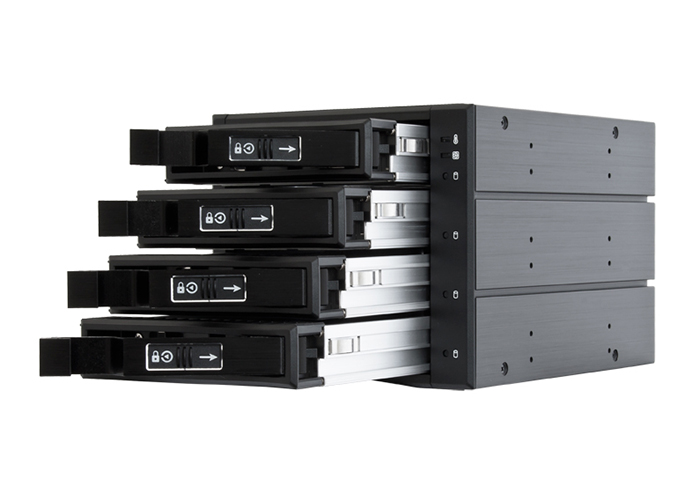

Chieftec SATA/SAS backplane CBP-3141SAS, 3*5.25" bays for 4 SAS/SATA HDDs, hot-swap, full aluminium

103.25 € 103.25 EUR

110.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed https://www.chieftec.eu/products-detail/334/CBP-3141SAS

Particulars

The new backplane CBP-3141SAS sets the standard with the patented anti-vibration design. Like no other backplane makes it suitable for diverse applications. The chassis is made of high quality aluminum and requires only three 5.25" and provides space for four 3.5" or 2.5" hard drives or SSDs. Supports both SATA I/II/III and SAS I/II.

Features:

  • Professional Data Backup

  • Hot Swap

  • Plug & Play compatible

  • Lock mechanism with key

  • Space saving
Interface (HDD/SSD)SATA I, SATA II, SATA III, SAS I/II
Dimension (DxWxH)202mm x 146mm x 126mm
Weight1,79 kg
Form Factor3x 5,25" bays for 4x SATA/SAS HDDs/SSDs (3,5" or 2,5")
Cooling80mm fan
Power Connector2x SATA
Data Interface (ext.)4x SATA
Supported Raid-LevelNo Raid controller is included
Special Features
  • Fan Failure detection LED
  • Reset switch for buzzer alarm
  • Overheating LED
  • Up to 6Gbps data transfer rate (SATA III / SAS)
Scope of deliveryBackplane, 4x SATA cable (60cm), set of screws, User manual (engl.)
