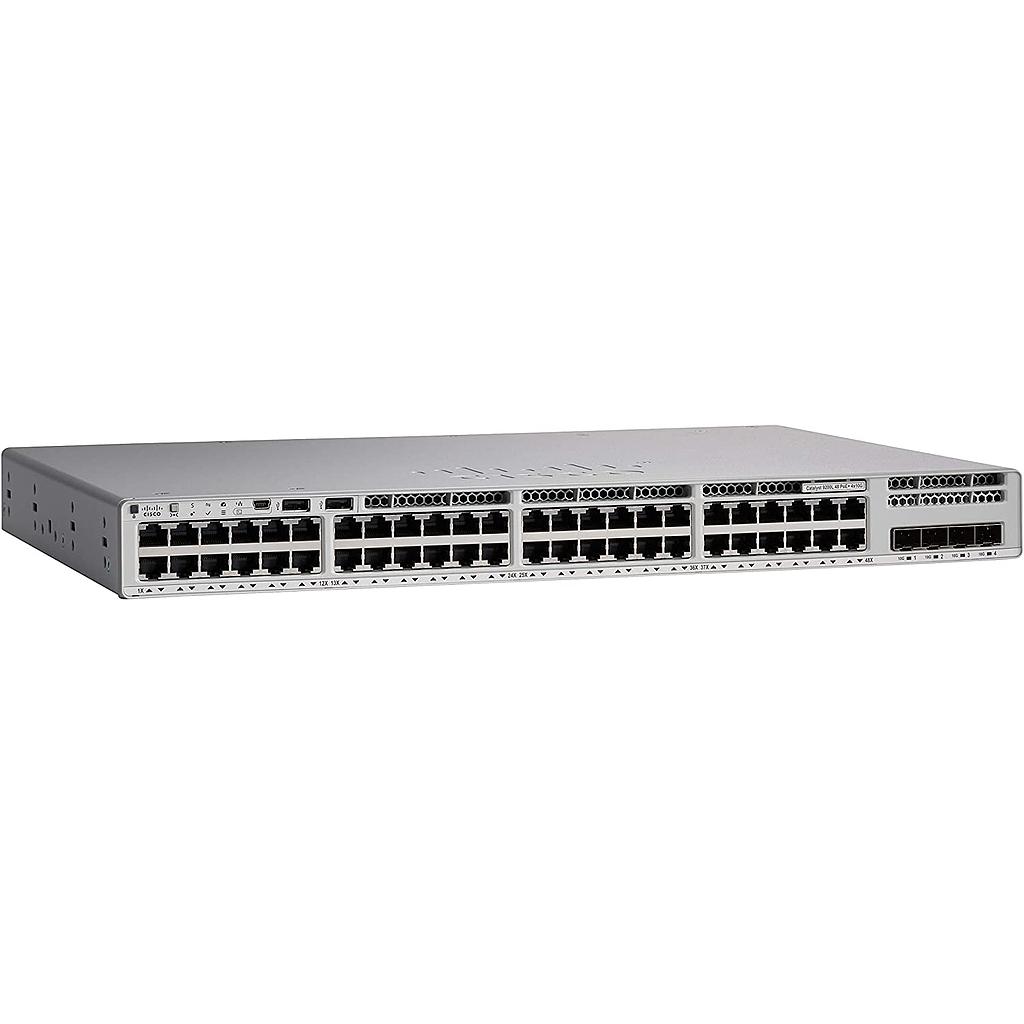

Cisco Catalyst 9200L 48-port PoE+ 4*10G uplink Switch Network Essentials(müüdav ainult koos DNA litsentsidega)
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| Toode: | |
| Toote nimetus/lühikirjeldus: | CISCO Catalyst 9200L 48-port PoE+ 4x10G uplink Switch Network Essentials(müüdav ainult koos DNA litsentsidega) |
| Toote nimetus / lühikirjeldus: | Cisco Catalyst 9200L - Network Essentials - switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ - rack-mountable - PoE+ |
| EAN kood: | 0889728170192 |
| Tootja garantii: | Garantii 60 kuud |
| General | |
| Device Type: | Switch - 48 ports - L3 - Managed |
| Enclosure Type: | Rack-mountable |
| Subtype: | Gigabit Ethernet |
| Ports: | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE): | PoE+ |
| Performance: | Stacking bandwidth: 80 Gbps Switching capacity: 176 Gbps Forwarding rate: 261.9 Mpps |
| Capacity: | Virtual networks: 1 MAC addresses: 16000 IPv4 routes: 11000 IPv4 routing table entries: 3000 IPv6 routing table entries: 1500 Multicast scale: 1000 ACL scale entries: 1500 FNF entries: 16000 Switched virtual interfaces (SVIs): 512 Queues per port (egress): 8 |
| Jumbo Frame Support: | 9198 bytes |
| Routing Protocol: | OSPF, RIP, VRRP, policy-based routing (PBR), MSTP |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF |
| Features: | EIGRP Stub Routing, Rapid PVST+, SRR, RSPAN, CoS, FNF, DSCP support, MACsec support, 6MB packet buffer, CoPP, SSM, Blue Beacon LED, EEE, SPAN, EEM, PIM, FHS, PVLAN support, Superior QoS, CIR |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
| RAM: | 2 GB |
| Flash Memory: | 4 GB |
| Built-in Devices: | RFID tag |
| Expansion / Connectivity | |
| Interfaces: | 48 x 1000Base-T RJ-45 PoE+ 4 x 10GBase-X SFP+ |
| Power | |
| Power Device: | Internal power supply (not installed) |
| Max Supported Qty: | 2 |
| Voltage Required: | AC 100-240 V |
| Miscellaneous | |
| MTBF: | 346,270 hours |
| Compliant Standards: | Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AES-128, RoHS, CNS 13438, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317 |
| Dimensions & Weight | |
| Width: | 44.5 cm |
| Depth: | 4.4 cm |
| Height: | 28.8 cm |
| Weight: | 5.5 kg |
