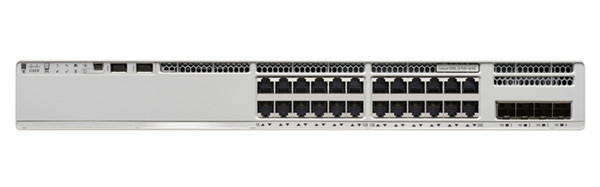

CISCO Catalyst 9200L 24-port Data 4x1G uplink Switch Network Essentials (müüdav ainult koos DNA litsentsiga)
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://www.cisco.com/c/en/us/products/collateral/switches/catalyst-9200-series-switches/nb-06-cat9200-ser-data-sheet-cte-en.html
Enclosure Type | Rack-mountable |
|---|---|
Ports | 24 x 10/100/1000 + 4 x Gigabit SFP (uplink) |
Performance | Stacking bandwidth: 80 Gbps Switching capacity: 56 Gbps Forwarding rate: 83.33 Mpps |
Capacity | Virtual networks: 1 IPv4 routes: 11000 IPv4 routing table entries: 3000 IPv6 routing table entries: 1500 Multicast scale: 1000 ACL scale entries: 1500 FNF entries: 16000 VLANs supported: 1024 Switched virtual interfaces (SVIs): 512 QoS hardware queues per port: 8 |
MAC Address Table Size | 16000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
Features | Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
Power | AC 240 V (50 Hz) |
Power Redundancy | Optional |
Dimensions (WxDxH) | 44.5 cm x 28.8 cm x 4.4 cm |
Weight | 4.35 kg |
