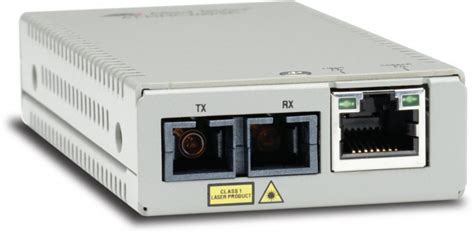

Allied Telesis 10/100TX to 100FX/SC MM media & rate converter, multi-region PSU
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| General | |
| Device Type: | Fibre media converter |
| Form Factor: | External |
| Networking | |
| Connectivity Technology: | Wired |
| Cabling Type: | 100Base-TX, 10Base-T, 100Base-FX |
| Data Link Protocol: | 100Mb LAN |
| Data Transfer Rate: | 100 Mbps |
| Optical Wave Length: | 1310 nm |
| MAC Address Table Size: | 2K entries |
| Max Transfer Distance: | 2 km |
| Status Indicators: | Link/activity, power |
| Features: | Full duplex capability, Smart Missing Link (SML), store and forward, Jumbo Frames support, Energy Efficient Ethernet, wall mountable, auto-negotiation, auto-uplink (auto MDI/MDI-X), VLAN support |
| Compliant Standards: | IEEE 802.1Q |
| Expansion / Connectivity | |
| Interfaces: | 1 x Ethernet 100Base-FX - SC multi-mode female x 2 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female |
| Miscellaneous | |
| Compliant Standards: | CISPR 22 Class A, C-Tick, EN 60950-1, EN 55022 Class A, FCC Class A certified, UL 60950-1, VCCI, EN 61000-3-2, EN 61000-3-3, EN55024 |
| TAA Compliant: | Yes |
| Power | |
| Power Device: | External power adapter |
| Power Consumption Operational: | 1.7 Watt |
| Dimensions & Weight | |
| Width: | 5.6 cm |
| Depth: | 10.16 cm |
| Height: | 2.18 cm |
| Weight: | 170 g |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 5 - 95% (non-condensing) |
