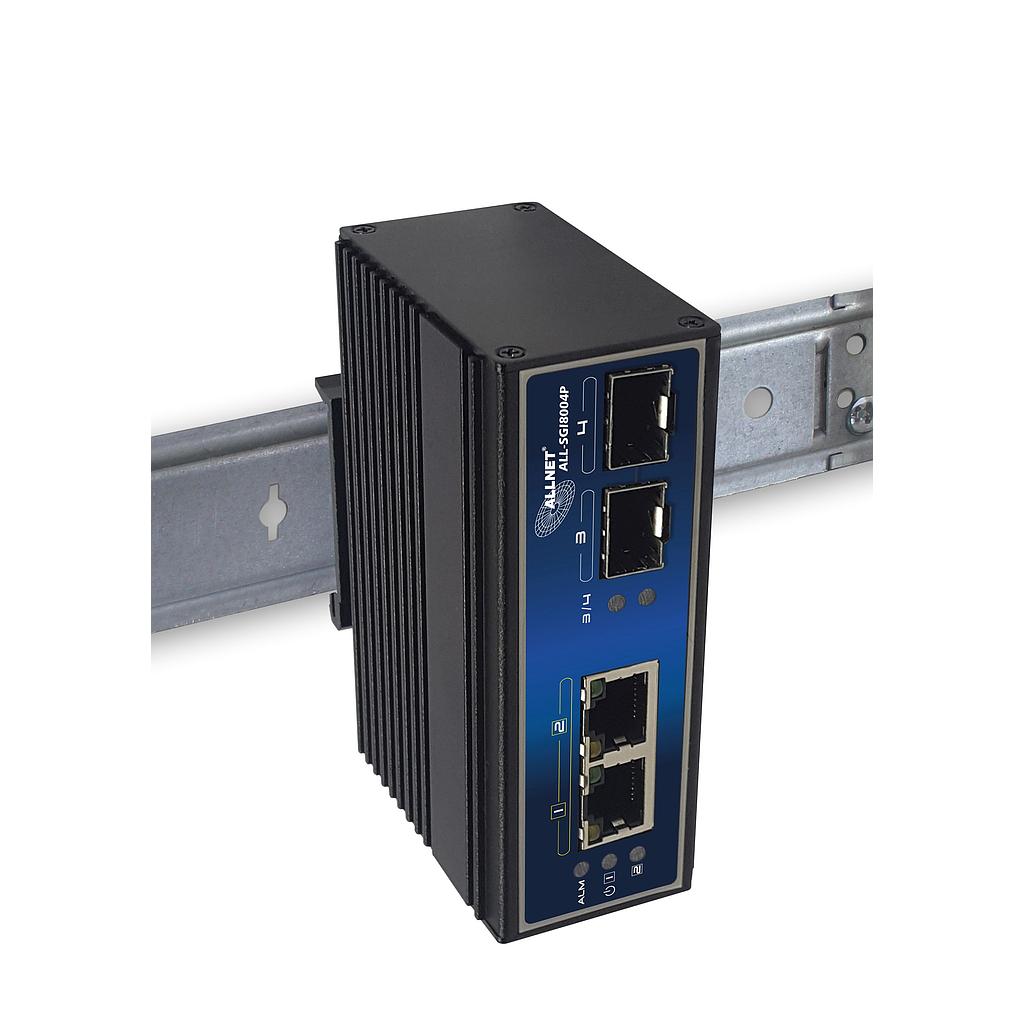

Allnet industrial unmanaged switch SGI8004P, 4 port Gigabit 180W /2*PoE bt/2*SFP/DIN rail/IP40/fanless

135.00 € 135.0 EUR

135.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed


  • Compact industrial switch with 2x 10/100/1000M PoE copper ports and 2x 1000M SFP ports for GBICS
  • 2x HighPower PoE ports, up to 90 Watt per port;
  • The fiber ports offer 2 modes which can be selected by the dip switch: 100M mode and 1000M mode, to adapt to different requirements;
  • Supports relay alarm for power off, network interruption and PoE off
  • Supports PoE auto check function, which is specially designed to solve the problems of frozen PoE devices. It can automatically detect the frozen PD devices and restart the output of PSE to the ports and reboot the PD device.
  • Support 6KV overvoltage protection, 6KV contact / 8KV air ESD protection.
  • Extended temperature range of -40°~75°.
Power supplyPowered by power adaptor
Range of voltageDC 48~57V "extra power supply needed, see accessories"
ConsumptionSelf consumption<5W
Downlink portsPorts 1~2 10/100/1000Base-T 90W PoE RJ45
Uplink portsPorts 3~4 supports 2 modes of 100Base-FX and 1000Base-X
PoE Auto-checkIf detect the frozen PD device, restart it
Working mode of Fibre PortsIt can be selected 100M or 1000M work mode by dip switch
Relay alarm1 channel relay alarm output for power off, ports PoE off, ports link down
Cable and distanceUse cat5e/6,100m max
StandardIEEE802.3, IEEE802.3u, IEEE802.3z
Switch fabric8 Gbps
Though put5.95 Mpps
MAC address table8K
IndicatorPower: 2 *red Uplink3~4: Green LEDs indicate Link/Act;
Downlink 1~2: Yellow LED indicate PoE, green LEDs indicate Link/Act
ProtectionSurge: 6KV, standard: IEC61000-4-5 ESD: 6KV: contact / 8KV: air, standard:IEC61000-4-2
Working temperature-40°C~75°C
Storage temperature-40°C~85°C
Humidity0~95%(Non condensation)
Dimension(L×W×H)101 mm×65 mm×36mm
MaterialAluminium alloy
