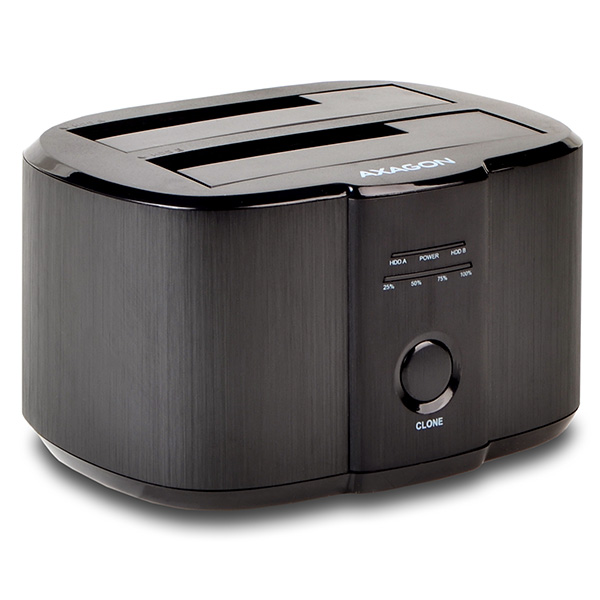

Axagon USB 3.2 Gen 1 docking station for up to 2 HDDs/SSDs at the same time
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| Input | |
| interface | USB 3.0 / USB 2.0 / USB 1.1 |
| rate | 5000 / 480 / 12 Mbit/s (super / high / full speed) |
| connector | USB 3.0 Type B female (on the docking station) |
| connector | USB Type A male (on the cable) |
| cable | 70 cm, disconnectable |
| Output | |
| interface | Serial ATA 3.1 |
| rate | 6 / 3 / 1.5 Gbit/s (SATA III / SATA II / SATA I) |
| connector | 2x 22-pin SATA data and power female |
| compatibility | all SATA I / SATA II / SATA III disks |
| total permeability | 5 Gbit/s theoretically (given by USB 3.0 input) |
| Supported device | |
| 2.5" | yes (SATA HDD/SSD) |
| 3.5" | yes (SATA HDD) |
| 5.25" | no |
| max. disk capacity | all, without limitations |
| max. height of 2.5" disk | all, without limitations |
| Supported features | |
| disk cloning | yes (without connection to a PC) |
| UASP | yes |
| TRIM | no |
| S.M.A.R.T. | yes |
| boot from connected disk | yes |
| putting disk to sleep | yes (HDD Auto Spindown / 10 min) |
| disk turning off | yes (HDD Turn Off) |
| automatic installation | yes |
| Plug and Play | yes |
| Hot Plug | yes |
| Other features | |
| design | aluminum / plastic |
| screwless mounting | yes |
| indication | green LED - power supply turned on (permanently on) |
| indication | 2x blue LED - each for one disk, disk connection (permanently on), data transmission (flashes) |
| indication | 4x LED 25%-50%-75%-100% - cloning takes place (flashes), cloning finished (permanently lit) |
| controls | power switch |
| controls | CLONE button - triggers disk cloning |
| dimensions | 142 x 102 x 80 mm |
| weight | 330 g (without accessories) |
| Power supply | |
| on the bus | no |
| through power adapter | yes (power adapter included) |
| OS support | |
| MS Windows | 10 / 8.1 / 8 / 7 / Vista / XP (all 32- and 64-bit versions) |
| MS Windows Server | 2016 / 2012 / 2008 / 2003 (all 32- and 64-bit versions) |
| Mac OS | X 10.x and higher |
| Linux | kernel 2.6.x and higher |
