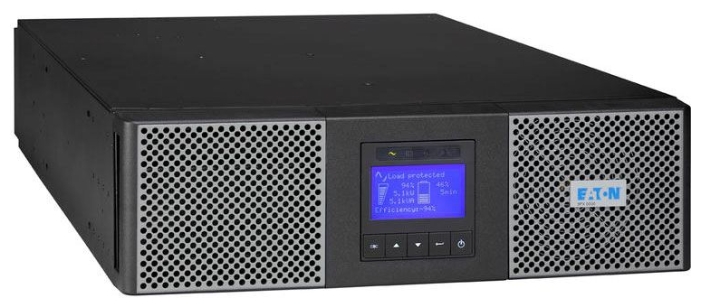

Eaton 9SX 5000i RT3U UPS

3 180.36 € 3180.36 EUR

3 073.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed



GENERAL SPECIFICATIONS

PRODUCT NAME
Eaton 9SX UPS
CATALOG NUMBER
9SX5KIRT
UPC
743172039347
PRODUCT LENGTH/DEPTH
68.5 cm
PRODUCT HEIGHT
13 cm
PRODUCT WIDTH
44 cm
PRODUCT WEIGHT
48 kg
WARRANTY
2 year
COMPLIANCES
CE Marked
TUV
cULus Listed
CSA 22.2
CERTIFICATIONS
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
CE
cULus Listed
EAC

BATTERY

BATTERY TYPE
Sealed, lead-acid
RUNTIME GRAPH
View runtime graph
BATTERY REPLACEMENT
Hot-swappable internal batteries and extended battery modules (EBMs)
BATTERY QUANTITY
15
BATTERY MANAGEMENT
  • ABM & Temperature compensated charging method (user selectable)
  • Automatic battery test
  • Deep discharge protection
  • Automatic recognition of external battery units
BATTERY RATING
12 V / 5 Ah
EXTENDED BATTERY CAPABILITY
Yes

ELECTRICAL OUTPUT

RECEPTACLE
(8) C13, (2) C19, Hardwired
VOLTAGE
230V
WATTAGE
4500 W
OUTPUT POWER FACTOR
0.9
OUTPUT VOLTAGE RANGE
200/208/220/230/240 V +/- 1%
OUTPUT WAVEFORM
Sine wave
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX
2
FEED TYPE
1
TOPOLOGY
Online/Double-conversion
VA RATING
5000 VA

ELECTRICAL INPUT

INPUT CONNECTION
Hardwired/fixed connection
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240/250V)
NOMINAL FREQUENCY
50/60 Hz
INPUT POWER FACTOR
>.99
INPUT VOLTAGE RANGE
176-276 V (100-276 V with derating)
INPUT FREQUENCY RANGE
40-70 Hz

COMMUNICATIONS

INCLUDES NETWORK CARD
No
COMMUNICATION
  • USB port (HID compliant)
  • Serial port (RS232)
  • Mini terminal block for remote On/Off
  • Mini-terminal block for remote power off
  • Dry contacts (4 outputs, relay, DB9)
ETHERNET INTERFACE
No
USER INTERFACE
Multilingual graphical LCD display
POTENTIAL FREE SWITCH CONTACT
Yes
EXPANSION SLOTS
One slot for optional communication card
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
TYPE OF INTERFACE
Other

ENVIRONMENTAL

ALTITUDE
3000 m
NOISE LEVEL
<45 dB at 1 meter
TEMPERATURE RANGE
0° to 40°C (32° to 104°F)
RELATIVE HUMIDITY
0-95% non-condensing

ADDITIONAL SPECIFICATIONS

CONSTRUCTION TYPE
482.6 mm (19 inch) device
PACKAGE CONTENTS
  • UPS
  • (2) IEC-IEC output cables
  • USB cable
  • Serial cable
  • (2) Supports for tower mounting
  • (2) brackets for 19’ mounting
  • (2) Rack-mounting kit
  • Cable locking system
  • Safety instructions
  • Quickstart guide
PHASE (OUTPUT)
1
INTERNAL BYPASS
Yes
AUTO SHUTDOWN FUNCTION
Yes
COLOR
Black
EFFICIENCY
94
RACK MOUNTING KIT
Yes
PHASE (INPUT)
1
HOT SWAP POWER
No
