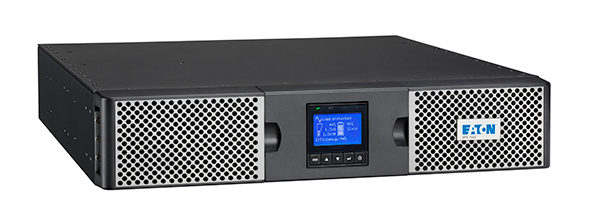

Eaton 9PX 1500i RT2U marine

2 301.72 € 2301.7200000000003 EUR

2 157.42 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

PRODUCT NAME
Eaton 9PX marine UPS
CATALOG NUMBER
9PX1500IRTM
PRODUCT LENGTH/DEPTH
45 cm
PRODUCT HEIGHT
8.65 cm
PRODUCT WIDTH
44 cm
PRODUCT WEIGHT
18.9 kg
WARRANTY
3 year on electronics, 2 year on battery
COMPLIANCES
CISPR22 Class B
FCC part 15 Class B
CE Marked
TUV
cULus Listed
CSA 22.2
CERTIFICATIONS
DNV GL Certified
EAC
UL 1778
IEC/EN 62040-1
CE
ENERGY STAR certified
IEC/EN 62040-2
UPC
743172081230
MODEL CODE
Eaton 9PX 1500i RT2U Marine

BATTERY

BATTERY TYPE
Sealed, lead-acid
RUNTIME GRAPH
BATTERY REPLACEMENT
Hot-swappable internal batteries and extended battery modules (EBMs)
BATTERY RATING
12 V / 9 Ah
EXTENDED BATTERY CAPABILITY
Yes

ELECTRICAL OUTPUT

RECEPTACLE
(8) C13
VOLTAGE
230V
WATTAGE
1500 W
OUTPUT POWER FACTOR
1
OUTPUT VOLTAGE RANGE
200/208/220/230/240 V +/- 1%
OUTPUT WAVEFORM
Sine wave
OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) - MAX
3
FEED TYPE
1
TOPOLOGY
Online
VA RATING
1500 VA

ELECTRICAL INPUT

INPUT CONNECTION
C14
INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)
NOMINAL FREQUENCY
50/60 Hz
INPUT POWER FACTOR
>.99
INPUT VOLTAGE RANGE
176-276 V (100-276 V with derating)
INPUT FREQUENCY RANGE
40-70 Hz

COMMUNICATIONS

INCLUDES NETWORK CARD
No
COMMUNICATION
  • USB port (HID compliant)
  • Serial port (RS232)
  • Mini terminal block for remote On/Off
  • Mini-terminal block for remote power off
  • Mini-terminal block for output relay
  • Dry contacts (3 outputs, 1 input, optocoupler, DB9)
ETHERNET INTERFACE
No
USER INTERFACE
Multilingual graphical LCD display
POTENTIAL FREE SWITCH CONTACT
Yes
EXPANSION SLOTS
One slot for optional communication card
SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
TYPE OF INTERFACE
Other

ENVIRONMENTAL

ALTITUDE
3000 m
NOISE LEVEL
<35 dB at 1 meter
TEMPERATURE RANGE
0° to 40°C
RELATIVE HUMIDITY
0-96% non-condensing

ADDITIONAL SPECIFICATIONS

CONSTRUCTION TYPE
482.6 mm (19 inch) device
PACKAGE CONTENTS
  • UPS
  • (2) IEC-IEC output cables
  • USB cable
  • Serial cable
  • (2) brackets for 19’ mounting
  • (2) Rack-mounting kit
  • (2) Supports for tower mounting
  • Cable locking system
  • Safety instructions
  • Quickstart guide
PHASE (OUTPUT)
1
INTERNAL BYPASS
Yes
AUTO SHUTDOWN FUNCTION
Yes
COLOR
Black/silver
EFFICIENCY
92.5
RACK MOUNTING KIT
Yes
PHASE (INPUT)
1
HOT SWAP POWER
No
