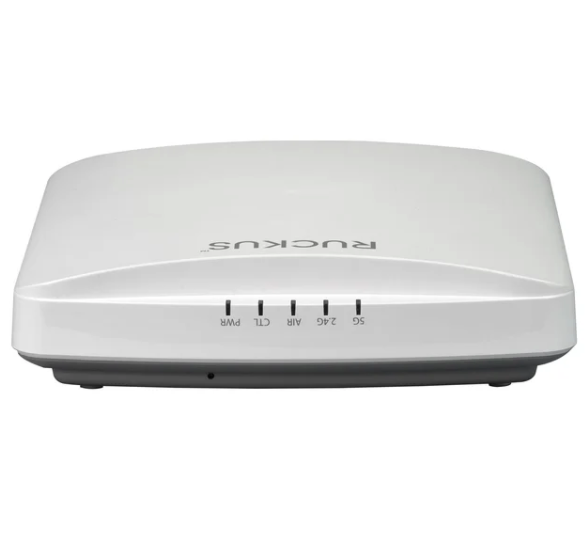

  2. Ruckus R650 dual-band Wrls 802.11ax wireless access point

Ruckus R650 dual-band Wrls 802.11ax wireless access point

520.00 € 520.0 EUR

520.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

https://www.ruckusnetworks.com/products/wireless-access-points/r650/

WI-FI
Wi-Fi Standards
  • IEEE 802.11a/b/g/n/ac/ax
Supported Rates
  • 802.11ax: 4 to 2400 Mbps
  • 802.11ac: 6.5 to 1732 Mbps
  • 802.11n: 6.5 to 600 Mbps
  • 802.11a/g: 6 to 54 Mbps
  • 802.11b: 1 to 11 Mbps
Supported Channels
  • 2.4GHz: 1-13
  • 5GHz: 36-64, 100-144, 149-165
MIMO
  • 4x4 SU-MIMO
  • 4x4 MU-MIMO
Spatial Streams
  • 4 streams SU/MU MIMO 5GHz
  • 2 streams SU/MU MIMO 2.4GHz
Radio Chains and Streams
  • 4x4:4 (5GHz)
  • 2x2:2 (2.4GHz)
Channelization
  • 20, 40, 80, 160/80+80MHz
Security
  • WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK, OWE
  • WIPS/WIDS
Other Wi-Fi Features
  • WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v
  • Hotspot
  • Hotspot 2.0
  • Captive Portal
  • WISPr
RF
Antenna Type
  • BeamFlex+ adaptive antennas with polarization diversity
  • Adaptive antenna that provides unique antenna patterns per band
Antenna Gain (max)
  • Up to 3dBi
Peak Transmit Power (Tx port/chain + Combining gain)
  • 2.4GHz: 26dBm
  • 5GHz: 28 dBm
Frequency Bands
  • ISM (2.4-2.484GHz)
  • U-NII-1 (5.15-5.25GHz)
  • U-NII-2A (5.25-5.35GHz)
  • U-NII-2C (5.47-5.725GHz)
  • U-NII-3 (5.725-5.85GHz)
2.4GHZ RECEIVE SENSITIVITY (DBM)
HT20HT40VHT20VHT40
MCS0MCS7MCS0MCS7MCS0MCS7MCS0MCS7
-93-75-90-72-93-75-90-72
HE 20HE40
MCS0MCS7MCS9MCS11MCS0MCS7MCS9MCS11
-93-75-70-64-90-72-67-61
5GHZ RECEIVE SENSITIVITY (DBM)
VHT20VHT40VHT80
MCS0MCS7MCS8MCS9MCS0MCS7MCS8MCS9MCS0MCS7MCS8MCS9
-98-80-77--95-77--72-92-74--69
HE20HE40HE80
MCS0MCS7MCS9MCS11MCS0MCS7MCS9MCS11MCS0MCS7MCS9MCS11
-98-80-75-70-95-77-72-67-92-74-69-64
2.4GHZ TX POWER TARGET (PER CHAIN)
RatePout (dBm)
MCS0 HT2022
MCS7 HT2019
MCS8 VHT2018
MCS9 VHT4017
MCS11 HE4015
5GHZ TX POWER TARGET (PER CHAIN)
RatePout (dBm)
MCS0, VHT2022
MCS7, VHT40, VHT8016.5
MCS9, VHT40, VHT8015
MCS11, HE20, HE40, HE8012.5
PERFORMANCE AND CAPACITY
Peak PHY Rates
  • 2.4GHz: 574 Mbps
  • 5GHz: 2400 Mbps
Client Capacity
  • Up to 512 clients per AP
SSID
  • Up to 31 per AP
RUCKUS RADIO MANAGEMENT
Antenna Optimization
  • BeamFlex+
  • Polarization Diversity with Maximal Ratio Combining (PD-MRC)
Wi-Fi Channel Management
  • ChannelFly
  • Background Scan Based
Client Density Management
  • Adaptive Band Balancing
  • Client Load Balancing
  • Airtime Fairness
  • Airtime-based WLAN Prioritization
SmartCast Quality of Service
  • QoS-based scheduling
  • Directed Multicast
  • L2/L3/L4 ACLs
Mobility
  • SmartRoam
Diagnostic Tools
  • Spectrum Analysis
  • SpeedFlex
NETWORKING
Controller Platform Support
  • SmartZone
  • ZoneDirector
  • Standalone
  • Unleashed
Mesh
  • SmartMesh™ wireless meshing technology. Self-healing Mesh
IP
  • IPv4, IPv6, dual-stack
VLAN
  • 802.1Q (1 per BSSID or dynamic per user based on RADIUS)
  • VLAN Pooling
  • Port-based
802.1x
  • Authenticator & Supplicant
Tunnel
  • L2TP, GRE, Soft-GRE
Policy Management Tools
  • Application Recognition and Control
  • Access Control Lists
  • Device Fingerprinting
  • Rate Limiting
IoT Capbale
  • Yes
PHYSICAL INTERFACES
Ethernet
  • One 2.5Gbps Ethernet port and one 1Gbps Ethernet port
  • Power over Ethernet (802.3af/at) with Category 5/5e/6 cable
  • LLDP
USB
  • 1 USB 2.0 port, Type A
PHYSICAL CHARACTERISTICS
Physical Size
  • 22.4cm (L), 19.4cm (W), 4.7cm (H)
  • 8.8in (L) x 7.6in (W) x 1.9in (H)
Weight
  • 0.854 kg
  • 1.88 lbs
Mounting
  • Wall, acoustic ceiling, desk
  • Secure bracket (sold separately)
Physical Security
  • Hidden latching mechanism
  • T-bar Torx
  • Bracket (902-0120-0000) Torx screw & padlock (sold separately)
Operating Temperature
  • 0ºC (32ºF) - 50ºC (122ºF)
Operating Humidity
  • Up to 95%, non-condensing
POWER1
Power SupplyOperating CharacteristicsMax Power Consumption
802.3af PoE
  • 2.4GHz radio: 2x2, 19dBm per chain
  • 5GHz radio: 2x4, 20dBm per chain
  • 2nd Ethernet port, onboard IoT & USB disabled
12.25W
802.3at PoE+
  • Full Functionality
  • 2.4GHz radio: 2x2, 23 dBm per chain
  • 5GHz radio: 4x4,

    22 dBm per chain

  • 2nd Ethernet Port, onboard IoT & USB Enabled (3W)

PoE+ : 21.59W

DC Power: 21.46W

CERTIFICATIONS AND COMPLIANCE
Wi-Fi Alliance2
  • Wi-Fi CERTIFIED™ a, b, g, n, ac, ax
  • Passpoint®, Vantage
Standards Compliance3
  • EN 60950-1 Safety
  • EN 60601-1-2 Medical
  • EN 61000-4-2/3/5 Immunity
  • EN 50121-1 Railway EMC
  • EN 50121-4 Railway Immunity
  • IEC 61373 Railway Shock & Vibration
  • UL 2043 Plenum
  • EN 62311 Human Safety/RF Exposure
  • WEEE & RoHS
  • ISTA 2A Transportation
SOFTWARE AND SERVICES
Location Based Services
  • SPoT
Network Analytics
  • SmartCell Insight (SCI)
Security and Policy
  • Cloudpath
ORDERING INFORMATION
901-R650-XX00
  • R650 dual-band (5GHz and 2.4GHz concurrent) 802.11ax wireless access point, 4x4:4 + 2x2:2 streams, adaptive antennas, dual ports, onboard BLE and Zigbee, PoE support. Includes adjustable acoustic drop ceiling bracket. One Ethernet port is 2.5GbE. Does not include power adaptor.

See Ruckus price list for country-specific ordering information.

Warranty: Sold with a limited lifetime warranty.

For details see: http://support.ruckuswireless.com/warranty.
