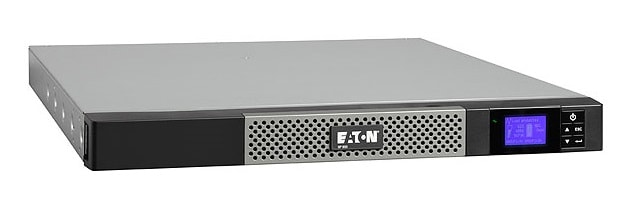

Eaton 5P 1150i rack 1U Netpack G2

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

UPS Power (VA)
1150 VA
UPS Power (W)
920 W
Input Voltage (V)
160-294 V (adjustable to 150 V-294 V)
Output Voltage (V)
230V default (200/208/220/230/240V)
Input Frequency (Hz)
- 47-70 Hz (50 Hz system)
- 56.5-70 Hz (60 Hz system)
- 40 Hz in low sensitivity mode

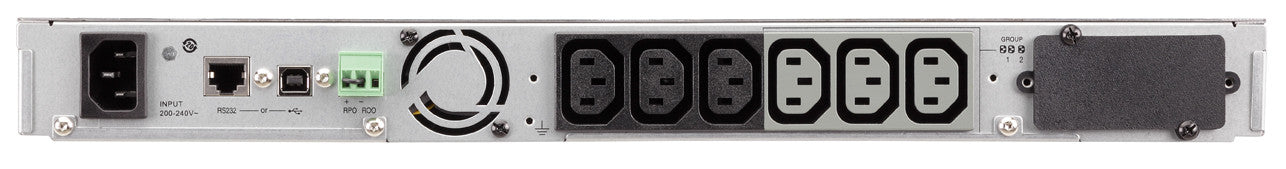

Input Connections
C14
Output Connections
6x C13
Waveform Type
Sine wave
Recharge time (hours)
-
Battery Type
Lead-acid maintenance-free (replaceable)
Topology
Line interactive
USB
Yes
Other Connections
- USB port (HID compliant)
- Serial port (RS232)
- Mini-terminal block for remote On/Off and Remote Power Off
- Dry contacts (2 outputs, optocoupler, RJ)
Control Panel
Multilingual graphical LCD display
Color
Black/Silver
Form Factor
Rack
Package Contents
- Rack-mounting kit
- Cable locking system
- USB cable
- 2x IEC-IEC cables
- Quickstart guide
- Safety instructions
- Network card
Width
438 mm
Depth
509 mm
Height
43.2 mm
Net Weight
14.28 kg
Gross Weight
19 kg
