Guarantee: | 24 months |
Certificate: | CE |
Gross weight [kg]: | 14.6 |
Net weight [kg]: | 14.2 |
Package height [mm]: | 330 |
Package width [mm]: | 230 |
Depth / Length of package [mm]: | 440 |
Package contents: | - UPS - RS-232 cable - USB cable - Software CD |
Dimensions (D/L x W x H): | 385x145x225mm |
Battery pack voltage: | 48V |
Communication system: | USB |
Display: | LCD |
Storage relative humidity: | +20℃ ~ +90% 0℃v ~ +40℃ (non-condensing) |
Overload: | 130% load lasting no less than 30 s. Recovery point is 90% load |
Output frequency: | 50 Hz ± 5 Hz (if AC normal) 50 Hz ± 1% (AC deviates from normal) |
Housing color: | Black |

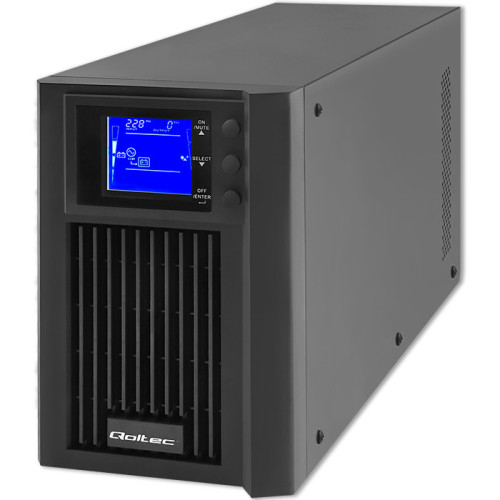

Comments: | Network emergency power supplies designed for telecommunications equipment and automatic data processing equipment, the so-called uninterruptible power supply UPS. In the event of a power failure, it provides a "reserve" of energy, thus protecting against loss |
Built-in battery: | Yes |
Output voltage: | 230VAC |
Input voltage: | 115VAC ~ 300VAC ± 5% |
Rated power: | 2kVA |
Power: | 1600W |
Waveform: | Pure sine wave |
UPS type: | On-line |
Number of batteries: | 4 |
Battery voltage: | 12V |
Additional information: | - possibility of installing a compatible SNMP module: product code 50389 - 1 phase |
Security: | - Against overvoltage - Against overload - Against short circuit - Against high and low voltage |
Noise level: | 50dBA |
Application: | Computers, servers, alarm systems, routers; industrial and manufacturing environments; medical centers |
Output sockets: | 1 x USB 1 x RS-232 1 x SCHUKO 1 x FRENCH |
Crest Factor: | 3:01 |
Power factor: | 0.8 |
Charging time: | 5 - 6 hours to reach 90% capacity |
Battery capacity: | 9Ah |
