| Rated power: | 6200VA/6200W |
| Net weight [kg]: | 8,900 |
| Battery overcharge protection: | 63VDC |
| Security: | Short circuit protection Against overheating Against overload Against overcharging |
| Peak power: | 12400VA |
| Gross weight [kg]: | 9,850 |
| Maximum battery charging current from PV: | 120A |
| Housing color: | White, green |
| Nominal input voltage: | 220/230VAC |
| Certificate: | CE |
| Battery-free operation: | Yes |
| Additional information: | Supports BMS Supports LiFePO4, AGM, GEL, DEEP CYCLE battery |
| Operating frequency: | 50Hz / 60Hz (auto-detect) |
| Maximum power of the photovoltaic panel: | 6500W |
| Operating temperature: | - 10°C to 55°C |
| Efficiency: | 95% |
| Comments: | We require the device to be installed by a qualified installer with the appropriate qualifications. If installed by unauthorized personnel, the warranty will automatically expire. The included protocol is an integral part of the warranty and is |
| Maximum charging current: | 120A |
| Storage temperature: | - 15°C to 60°C |
| Switching time: | 10 ms (UPS) 20 ms (Home appliances) |
| MPPT Starting Voltage: | 60VDC |

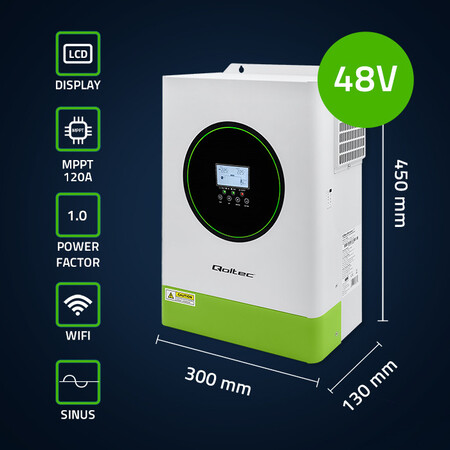

| Dimensions (D/L x W x H): | 450 x 300 x 130mm |
| Output voltage waveform: | Pure sine wave |
| MPPT operating voltage range: | 60 ~ 500VDC |
| Set contents: | 1 x Solar Inverter 1 x User Manual 1 x Device Installation Protocol |
| Charging type: | MPPT |
| Maximum open circuit voltage of the photovoltaic panel: | 500VDC |
| Producer: | Qoltec |
| Depth / Length of the package [mm]: | 540 |
| Battery voltage: | 48V |

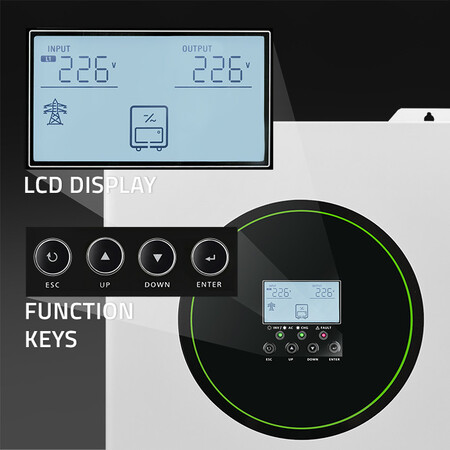

| Display: | LCD |
| Type: | Off-grid |
| Package width [mm]: | 395 |
| Charging current (AC): | 80A |
| Interface: | RS-232, RS485 |
| Number of phases: | Single-phase |
| Package height [mm]: | 210 |
| Variable charging voltage: | 54VDC |
| Cooling: | 2 x fan |
