| Dimensions (D/L x W x H): | 130 x 100 x 33mm |
| Included in the set: | 1 x MPPT Controller 1 x User Manual 1 x Warranty Card |
| Depth / Length of the package [mm]: | 110 |
| Package width [mm]: | 148 |
| Package height [mm]: | 43 |
| Net weight [kg]: | 0.287 |
| Gross weight [kg]: | 0.326 |
| Certificate: | CE |
| Maximum open circuit voltage of the photovoltaic panel: | <100V |
| Battery type: | Compatible with GEL, AGM, LiFePO4, Flooded, Li(NiCoMn)o2 |
| Material: | ABS, metal |
| Color: | Blue |
| Maximum power: | PV: 195W (12V) 390W (24V) |
| Nominal voltage: | 12/24V |
| Rated current: | 15A |
| Maximum voltage: | (PV) 50V |
| MPPT efficiency: | 99% |
| Security: | Short circuit protection Against reverse polarity Against overload Against overcharging |

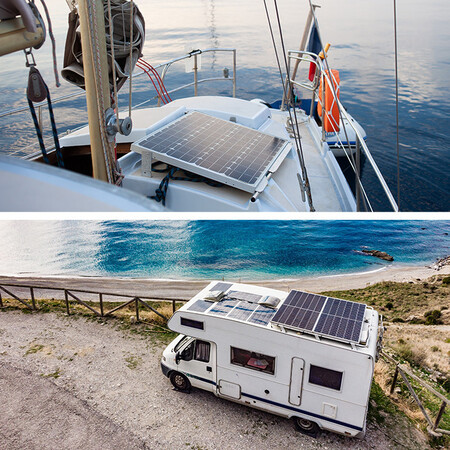

| Application: | Home photovoltaic systems Portable solar kits Solar systems in campers and caravans Solar installations on boats and yachts Any location requiring efficient and reliable battery charging management |
| Additional information: | USB output (5V/1A) 12AWG/4mm² connectors |
| Degree of protection: | IP30 |
| Operating temperature: | -35˚C ~ +55˚C |
| Storage temperature: | -30˚C to +80˚C |
