| Dimensions (D/L x W x H): | 265 x 192 x 92 mm |
| Included in the set: | 1 x MPPT Controller 1 x User Manual 1 x Warranty Card |
| Depth / Length of the package [mm]: | 308 |
| Package width [mm]: | 215 |
| Package height [mm]: | 143 |
| Net weight [kg]: | 1.988 |
| Gross weight [kg]: | 2.203 |
| Certificate: | CE |
| Maximum open circuit voltage of the photovoltaic panel: | <100V |
| Battery type: | Compatible with GEL, AGM, LiFePO4, Flooded, Li(NiCoMn)o2 |
| Material: | ABS, metal |
| Color: | Gray, green |
| Maximum power: | 780W for 12V 1560W for 24V |
| Nominal voltage: | 12/24V |
| Rated current: | 60A |
| MPPT efficiency: | 95% |

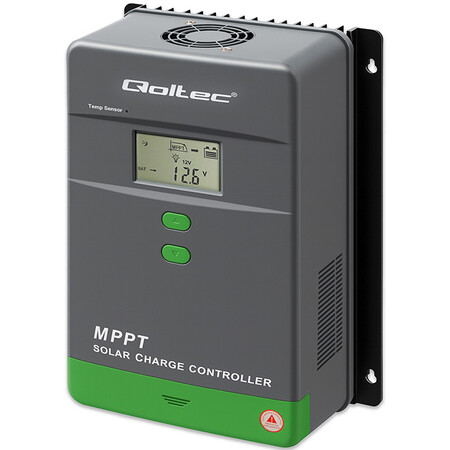

| Display: | LCD |
| Security: | Short circuit protection Against overheating Against overload Against overcharging |
| Application: | Home photovoltaic systems Portable solar kits Solar systems in campers and caravans Solar installations on boats and yachts Any location requiring efficient and reliable battery charging management |
| Additional information: | Equipped with a temperature sensor Bluetooth option |
| Degree of protection: | IP30 |
| Operating temperature: | -20˚C ~ +55˚C |
| Storage temperature: | -30˚C to +80˚C |
