Tehnilised andmed
TYPE
VRLA
TECHNOLOGY
AGM
RATED CAPACITY
7Ah
VOLTAGE
12V
MAXIMUM CHARGING CURRENT
1.95A
MAX. DISCHARGE CURRENT
97.5A (5 sec)
FLOAT CHARGE
13.6 - 13.8 V
CYCLIC CHARGE
14.5 - 15.0 V
CONNECTOR
T2 (Fast-on 250)
INTERNAL RESISTANCE
35mΩ
CAPACITY AFFECTED BY TEMPERATURE (10HR)
40°C : 102%
25°C : 100%
0°C : 85%
-15°C : 65%
25°C : 100%
0°C : 85%
-15°C : 65%
SELF-DISCHARGE (25℃)
Maximum reliability and very low self-discharge.
After 3 months of storage, it retains: 91%.
After 6 months of storage, it retains: 82%.
After 12 months of storage, it retains: 65%.
After 3 months of storage, it retains: 91%.
After 6 months of storage, it retains: 82%.
After 12 months of storage, it retains: 65%.
SERVICE LIFE
10 years (when working with an uninterruptible power supply UPS)
USAGE
- Alarm systems and monitoring
- UPS
- Electronic toys
- Motorcycles, quads, scooters, etc.
- Forklifts, golf carts, wheelchairs
- Solar battery systems
- Medical equipment
- Emergency lighting
- UPS
- Electronic toys
- Motorcycles, quads, scooters, etc.
- Forklifts, golf carts, wheelchairs
- Solar battery systems
- Medical equipment
- Emergency lighting
ADDITIONAL INFORMATION
- wide operating temperature range,
- resistance to low temperatures,
- maintenance-free
- resistance to low temperatures,
- maintenance-free
OTHER PARAMETERS
COLOUR
Black
TEMPERATURE RANGE
Discharge: -15˚C ~ +50˚C
Charge: -10˚C ~ +50˚C
Storage: -20˚C ~ +50˚C
Charge: -10˚C ~ +50˚C
Storage: -20˚C ~ +50˚C
DIMENSIONS DEVIATION
+/- 2%

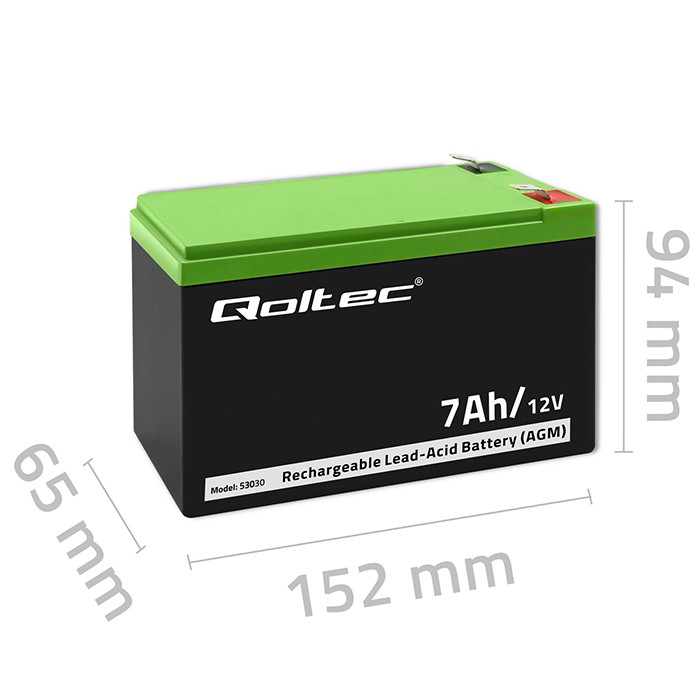

DIMENSIONS (D/L X W X H)
65 x 152 x 94 mm
PACKAGE CONTENTS
AGM battery 7Ah
PACKAGE DEPTH / LENGTH [MM]
65
PACKAGE WIDTH [MM]
152
PACKAGE HEIGHT [MM]
94
WEIGHT DEVIATION
+/- 10%
NET WEIGHT [KG]
1.9470
GROSS WEIGHT [KG]
1.9480
