| 1 | Efficiency | 90% |
| 2 | Depth / Length of the package [mm] | 145 |
| 3 | Package width [mm] | 245 |
| 4 | Package height [mm] | 74 |

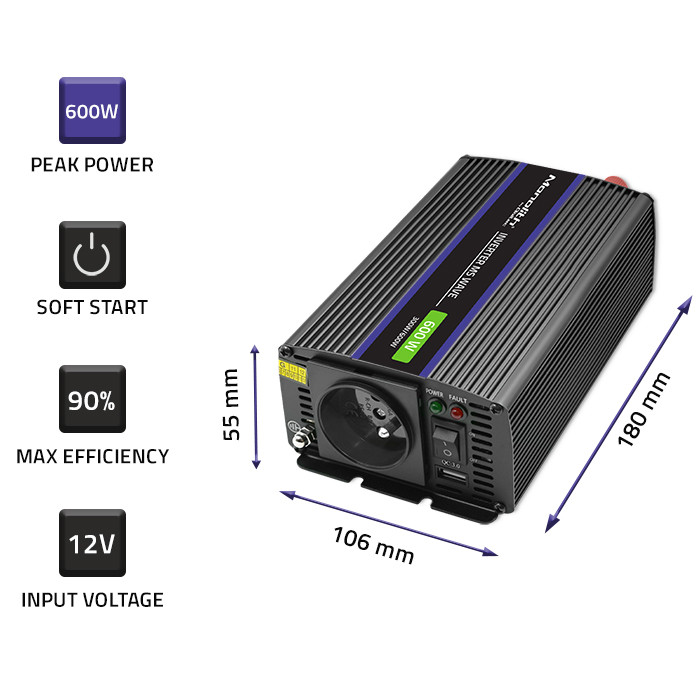

| 5 | Dimensions (D/L x W x H) | 106 x 180 x 55 mm |
| 6 | Output voltage | 230V |
| 7 | Net weight [kg] | 0.623 |
| 8 | Guarantee | 24 months |
| 9 | Input voltage | 12V |
| 10 | Certificate | CE |
| 11 | Material | Aluminum |
| 12 | Output voltage waveform | Modified sine wave |
| 13 | Operating temperature | -10˚C ~ +50˚C |
| 14 | Reverse polarity protection | Fuse |
| 15 | No-load current | ≤0.35A |
| 16 | Comments | Do not cover the device's ventilation openings. Remember to connect the wires correctly and ensure the supply voltage is polarized! Power consumption must not exceed the maximum power of the converter. |
| 17 | USB ports | 5V/2A (QC 3.0 - 18W) |
| 18 | Additional information | Soft start function We recommend choosing batteries above 30AH Additional fuses included |

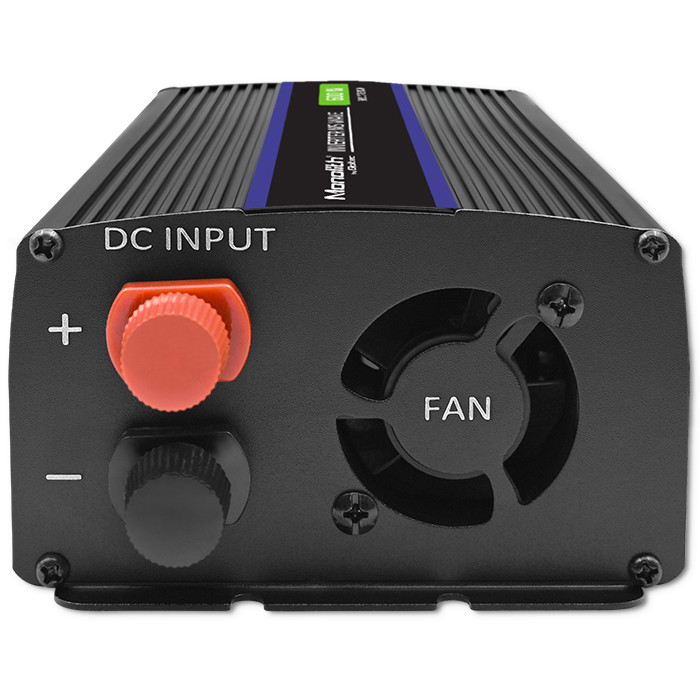

| 19 | Cooling | 1 x Fan |
| 20 | Security | UVP/OVP/OCP/OTP/SCP Grounding |
| 21 | Application | Computer, monitor, office equipment, consumer electronics, game consoles, audio/video equipment, servers, monitoring devices, lighting, small household appliances, mobile device charging |
| 22 | Storage temperature | -30˚C ~ +70˚C |
| 23 | Rated power | 300W |
| 24 | Gross weight [kg] | 0.851 |
| 25 | Total power (instantaneous) | 600W |
| 26 | Producer | Qoltec |
| 27 | Output frequency | 50 Hz ± 2HZ |
| 28 | Contents of the set | 1 x Voltage converter 2 x Battery connection cable 1 x Car cigarette lighter connection cable 2 x Fuse 1 x Warranty card 1 x User manual |
