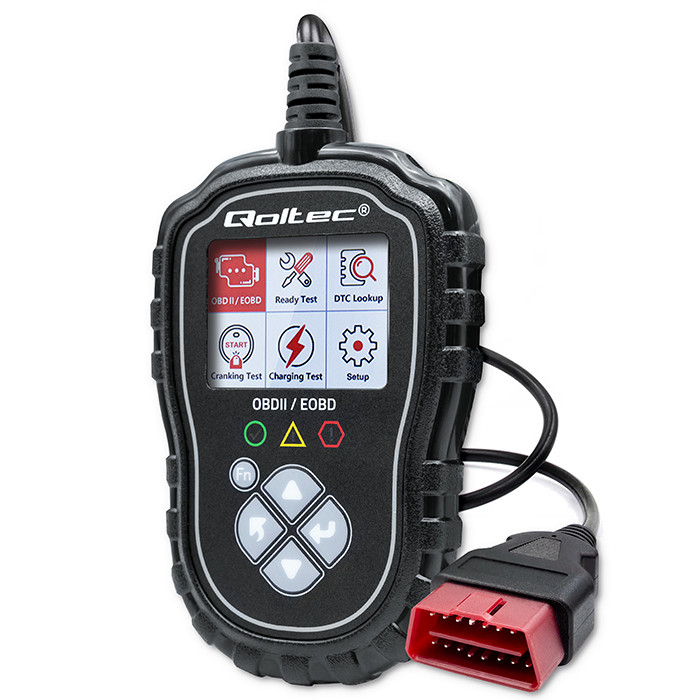

Qoltec Proline digital diagnostic tester, OBD2 EOBD, 8-25V, dual system
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| 1 | Depth / Length of the package [mm] | 55 |
| 2 | Package width [mm] | 110 |
| 3 | Package height [mm] | 170 |
| 4 | Dimensions (D/L x W x H) | 130 x 85 x 20 mm |
| 5 | Connector | 16 PIN (OBDII standard) |
| 6 | Color | Black |
| 7 | Net weight [kg] | 0.174 |
| 8 | Guarantee | 24 months |
| 9 | Input voltage | 8V – 25V (standard 12V in passenger cars) |
| 10 | Certificate | CE |
| 11 | Display | 2.4'' color LCD |
| 12 | Operating temperature | -20˚C ~ +70˚C |
| 13 | Languages | Polish, English, German, Spanish, French, Italy (Italian 142), Danish, Finnish |
| 14 | Packaging | Box |
| 15 | Additional information | Communication protocols supported by the device: SAE J1850 PWM (41.6 kbaud) SAE J1850 VPW (10.4 kbaud) ISO9141-2 (5 bit, 10.4 kbaud) ISO14230-4 KWP (5 bit init,10.4 kbaud) ISO14230-4 KWP (fast init,10.4 kbaud) ISO15765-4 CAN (11 bit, 500 kbaud) ISO15765-4 CAN (29-bit, 500 kbaud) ISO15765-4 CAN (11-bit, 250 kbaud) ISO15765-4 CAN (29-bit, 250 kbaud) |
| 16 | Functions | Read and clear engine fault codes (DTCs) Turn off the Check Engine Light (MIL) View real-time sensor data (Live Data) Analyze freeze frame data Check I/M readiness status (e.g. for MOT) Read vehicle information: VIN, Calibration ID, CVN Test exhaust emission systems (Smog Check) |
| 17 | Operating current | 52mA |
| 18 | Application | Car workshops Transport companies Automotive shops and wholesalers |
| 19 | Package contents | 1 x Battery Tester with Cable 1 x User Manual 1 x Warranty Card |
| 20 | Gross weight [kg] | 0.213 |
| 21 | Cable length | ~0.95m |
