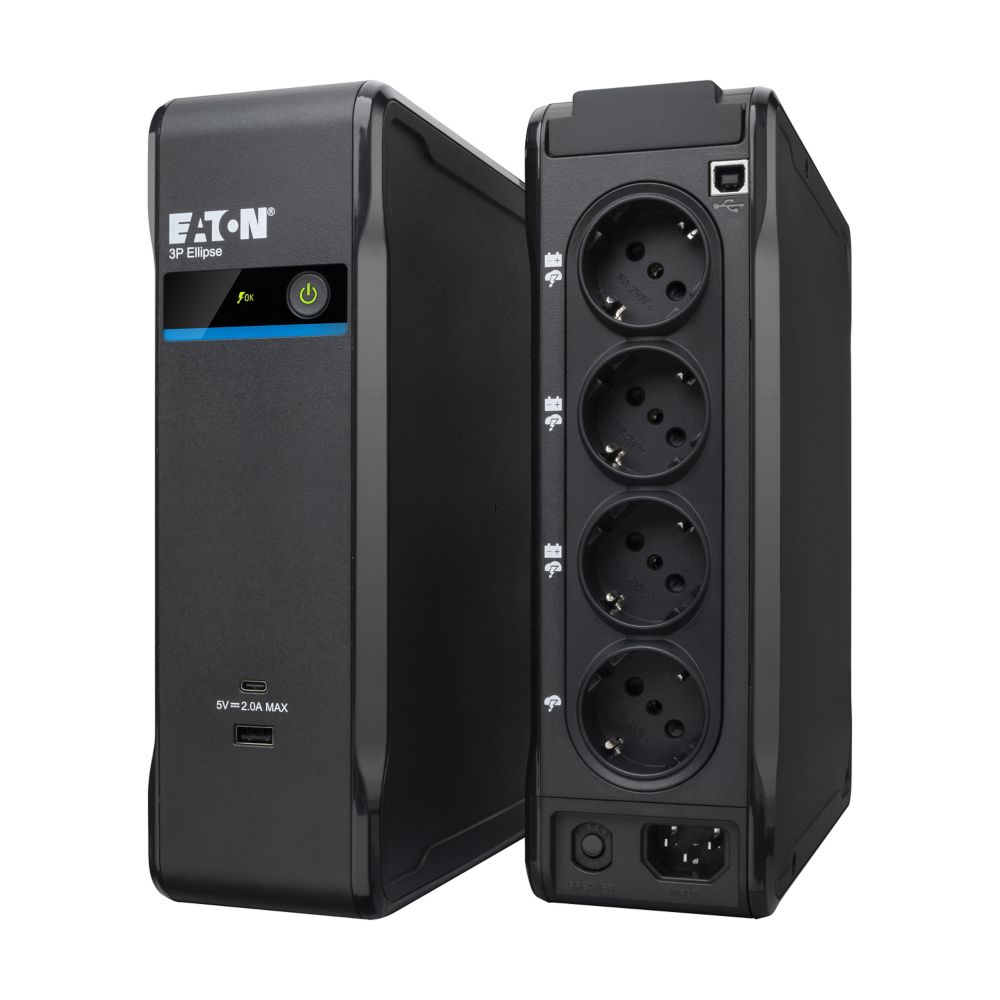

Eaton 3P Ellipse off-line UPS USB DIN, 700VA/420W, input: C14, outputs: (3) Schuko, (1) Schuko surge only, USB charge, tower
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
General specifications
| Product Name | Eaton 3P Ellipse UPS |
| Product Length/Depth | 235 mm |
| Product Height | 263 mm |
| Product Width | 81 mm |
| Product Weight | 3.9 kg |
| Warranty | 3 year on electronics, 2 year on battery |
| Compliances | CE Marked LVD Directive (CB) EMC Directive RoHS Directive WEEE Directive Packaging Directive Batteries Directive IEC 61643-11 |
| Certifications | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Cm |
| Model Code | Eaton 3P Ellipse 700 USB DIN |
Battery
| Battery type | Sealed, lead-acid |
| Runtime graph | View runtime graph |
| Battery quantity | 1 |
| Battery management | Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable |
| Battery rating | 12 V / 7 Ah |
| Extended battery capability | No |
Electrical output
| Receptacle | (3) Schuko, (1) Schuko surge only |
| Voltage | 230V |
| Wattage | 420 W |
| Output power factor | 0.6 |
| Output voltage range | 184-264 V (adjustable to 161-284 V) |
| Output nominal voltage | 230V default (220/230/240V) |
| Feed type | 1 |
| Topology | Offline |
| VA rating | 700 VA |
Electrical input
| Input connection | C14 |
| Input nominal voltage | 230V default (220/230/240V) |
| Nominal frequency | 50-60 Hz |
| Input cord length | 1.5 m |
| Input voltage range | 184-264 V (adjustable to 161-284 V) |
| Input frequency range | 46-70 Hz |
Communications
| Includes network card | No |
| Communication | USB port (HID compliant) |
| Ethernet interface | No |
| User interface | LED display |
| Potential free switch contact | No |
| Expansion slots | Yes |
| Software compatibility | Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings) |
| Type of interface | USB |
Environmental
| Altitude | 3000 m |
| Noise level | <25 dB at 1 meter |
| Temperature range | 0° to 40°C |
| Relative humidity | 0 - 95 % (non-condensing) |
Additional specifications
| USB interface | Yes |
| Construction type | Free standing model |
| Package contents |
|
| Phase (output) | 1 |
| Auto shutdown function | Yes |
| Color | Black |
| Efficiency at max. load | 97 |
| Rack mounting kit | No |
| Phase (input) | 1 |
| Surge protection | Yes |
